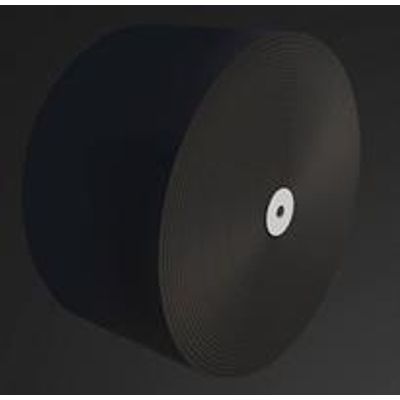

Sanjia - Single/Multi Textile Conveyor Belt

SHARE

The Single/Multi Textile conveying belt is widely applied to conveying materials in the fields of mine, ports, metallurgy, building, chemical engineering, electric power, grain, etc

Most popular related searches
conveyor belt
belt conveyor
chemical building
port engineering

Fabric compositions

  • Polyester/polyamide(Nylon) EP
  • Terylene/cotton TC
  • Polyamide(Nylon)/polyamide(Nylon) NN
  • Polyester/polyamide/polyamide  EPP（SW straight warp）
  • Cotton/cotton   CC
  • Monofilament/polyester XE

Weave: from one to six layers

  • Plain weave，CFW，Rib weave，Broken twill weave

Tensile strength：100kN/m/ply 800kN/m/ply

  • Width：300mm 2500mm
  • Thickness of cover rubber：1.5mm 30mm

Nylon is one of the best quality synthetic fiber the rubber industry use nowadays. The nylon canvas is woven by nylon fiber both in warp and in weft. It is the most widely used fabric in rubber industry, and its outstanding merits are its high abrasion resistance, high tensile strength and good fatigue resistance. Conveyor belts with nylon canvas inside have the characteristics of thin belt body, high tensile strength, good shock resistance, good trough ability, high adhesion between plies, splendid flexibility and long working life. Nylon conveyor belts are suitable for medium，long一distance and heavy load transportation of materials, widely used in mining.metallurgical industry and architectural industry, ports and so on.
