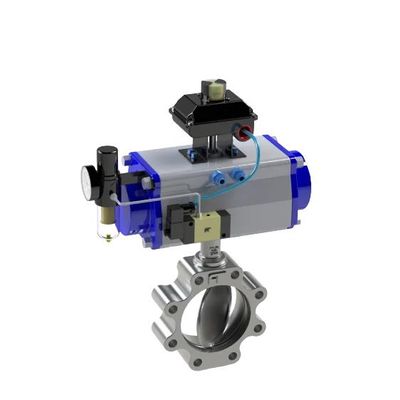

Freture - Single Offset Butterfly Valve
The single offset butterfly valve has the shaft placed behind the sealing region midline, while the single eccentric butterfly valve shaft is centered to the valve`s centerline." Freture Techno is a leading Single Offset Butterfly Valve manufacturer in Mumbai, India. The stem of a single-offset butterfly valve is placed behind the disc. Because of the introduction of the double-offset, or high-performance, valve, there are few, if any, valves of this type left on the market today.
What is a Single Offset Butterfly Valve?
A Single Offset Butterfly Valve is a type of valve that uses a disc with a hole in the center to control the flow of fluid. The disc is rotated to open or close the valve. Single Offset Butterfly Valves are made from a single piece of metal, which makes them strong and durable. They are also resistant to corrosion, making them ideal for use in harsh environments.
When the disc is in the open position, the hole in the disc allows fluid to flow through the valve. When the disc is in the closed position, the hole is blocked, preventing fluid from flowing through the valve.
Single Offset Butterfly Valves Features- Precision Design: Crafted with precision, these valves ensure consistent and accurate flow control.
- Versatile Applications: Ideal for chemical, petrochemical, water treatment, HVAC, and more.
- Reliable Performance: Low torque, easy operation, and minimal maintenance.
- Leakage Prevention: Resilient seat design for safety and efficiency.
- Corrosion Resistance: Built to withstand harsh environments.
- Cost-Effective: Competitive pricing without compromising quality.
- Customization: Tailor-made solutions to meet your unique requirements.
- Expert Support: Our experienced team is always ready to assist.
Water Treatment: Ensure efficient water flow and control in treatment processes.
- Chemical & Petrochemical: Reliable solutions for hazardous fluid management.
- HVAC: Precise control for heating, ventilation, and air conditioning systems.
- Oil & Gas: Essential in oil refining and gas handling operations.
- Construction: Used in pipelines and industrial construction projects.
- Hospitality: Ensure seamless water and fluid management in hotels and resorts.
- Quality Assurance: Our valves are built to last and meet the highest industry standards.
- Cost-Effective: Competitive pricing without compromising on quality.
- Customization: Tailor-made solutions to meet your specific needs.
- Expert Support: Our team of experts is ready to assist you at every step.
- Proven Experience: Trust in our years of expertise in fluid control technology.
Upgrade your fluid control systems with Feature Techno`s Single Offset Butterfly Valves. Contact us today and experience the difference in precision, reliability, and performance. Your satisfaction is our priority!
- End Connection: Flange (B16.5) / Lug Type / Wafer Type
- Size: 15 NB - 600 NB
- Pressure Rating: #150-#300 - PN 10 - PN 16
- Temperature Range: -190° C to 350 ° C
- MOC: Carbon Steel / Stainless Steel / Alloy
- Seat: Soft Seat- Nitrile Rubber, EPDM, Viton / Metal Seat
- Design Standard: EN 593 (BS 5155), API 609, MSS SP-67
- Operation: Manual / Actuator / Gear
- Face to Face: API 609 CAT A / MSS SP-67 (Narrow Body), ISO 5752 (Short)
- Fire safe design: API 607
- Testing: API 598 Rev 2009
- Documents: BS/EN 10204-3.1 REV 2019
- Higher Life Cycle
The vulcanised liner`s strength and strong connection with the body prevent it from being bent or torn by the disc during valve operations. - Leak Free Tight Stem Sealing
The flat surfaces on the top and bottom of the seal disc interface with similar profiles on the body liner, preventing leakage to the atmosphere due to the huge area of contact. - ISO PAD Mounting
The built-in ISO 5211 platform allows for direct installation of actuators and gear units, resulting in increased system dependability and efficiency. - Minimum Flow Drop
The discs have been developed hydrodynamically to give minimal flow resistance and increased flow coefficients. - Easy Installation
Between the valve and the companion flange, the valve`s integrated liner works as a gasket. Unlike loose liner, the liner that is connected to the body is neither stretched or damaged during installation. - Drive with Confidence
A significant seal characteristic is the positive shaft-disc connection with anti-blow out. To reduce friction and enhance wear resistance, the shaft is Special-coated.
