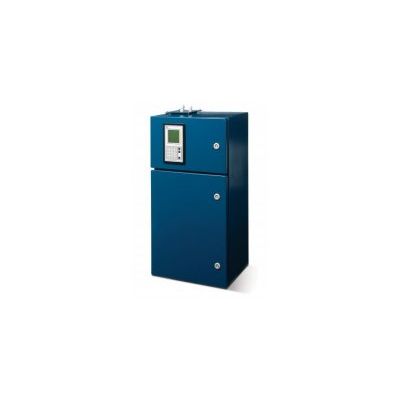

Partech - Model MicroMac C -Single or Multiparameter Colorimetric Analyser

The chemistry module employs the patented Loop Flow Analysis System which results in a very flexible analysis system which can incorporate high temperature digestion or heating, UV digestion, acid digestion, and temperature controlled end point reactions all utilising either a visible light colorimeter or a fluorimeter.

The analytical methods used in the MicroMac C are based on the Standard Methods that are used in laboratories throughout the world. Many of these methods have their basis in the "Methods for the Examination of Waters and Associated Materials" as published by HMSO - Standing Committee of Analysts.

The Loop Flow Analysis system can be configured as a single or multiple chemistry module: The multiple chemistry module can have up to 4 chemistries or 7 reagent additions.The chemistry module shown shows the a typical analysis loop, this can include a high temperature heating bath for hot acid digestion and high pressure valves and PTFE tubing in all areas in contact with the acid or high temperatures when required. Up to seven reagent valves allow the analyser to be configured for multiple chemistries, typical combinations include:

• Orthophosphate and Soluble Iron
• Orthophosphate and Ammonia
• Nutrient Suite - Orthophosphate, Ammonia, Nitrate and Nitrite
• Total Phosphorus and Total Iron

The most critical part of any monitor is the sampling system, which must be able to get the sample to the monitor in a condition fit for analysis, Partech have developed a range of sampling systems that perform this task in a way that reduces maintenance time to a minimum. In addition to providing the sampling system Partech provide a full installation and commissioning service. This service ensures that the analyser works from day one and provides the user with full documentation and training on the system.

Each site needs to be reviewed on it`s own merits and Partech will work with you to ensure that the most cost effective solution will be offered.

Crude Sewage or Process Monitoring

The system developed and fully implemented by Partech incorporates a mascerating submersible pump, air compressor, controller and standard filter unit with 20 micron filter element. This combination makes this arduous application possible and gives the option of feed-forward control when carrying out chemically assisted Phosphate removal.

Final Effluent or Surface Water Monitoring

Monitoring in these applications allows the use of either a basic system with a simple peristaltic pump or a full sampling system incorporating a submersible pump, air compressor, controller and standard filter unit with 400 micron filter element. The full system is required for locations that have a significant level change from the sample to the analyser installation or where fouling is believed to be an issue.

Potable Water Treatment

Most potable water installations have relatively simple sample requirements and it is normally possible to connect the analyser and it`s sample pot to the site pipework without the need for additional sample conditioning.

Partech are the exclusive UK distributor for Systea Sri who are based in Rome, Italy. Partech have experienced fully trained sales and service personnel.

• Nutrients
• Ammonia
• Phosphate
• Aluminium
• Iron
• Manganese

Measurement Characteristics

• Principal of Operation : Colorimetric or Fluorimetric
• Colorimeter : Dual Beam, Silicon Detector
• Fluorimeter : Excitation at 370 nm, Emission 420-470 nm
• Number of Parameters :
• MP1 - Single Parameter
• MP2 - Dual Parameter
• MP3 - Three Parameters
• MP4 - Four Parameters
• Measurement Frequency : Programmable, dependent on the parameter in use

Parameters:

• Aluminium : 0-500 µg/l to 0-5 mg/l
• Ammonia : 0-2 to 0-50 mg/l as N
• Manganese : 0-300 µg/l to 0-5 mg/l
• Orthophosphate : 0-500 µg/l to 0-50 mg/l as P
• Soluble Iron : 0-500 µg/l to 0-10 mg/l
• Total Iron : 0-5 mg/l as P
• Total Phosphorus : 0-500 µg/l to 0-5 mg/l as P

Physical

• Dimensions (hxwxd) : 800 x 450 x 300 mm
• Weight : 25 kg
• Protection Class : IP55

Electrical :

• Power Supply : 12 VDC or 115/230 VAC
• Power Rating : 4W on standby , 10W during analysis

Environmental Data :

• Operating Temperature : 10 to 30ºC
• Location : Indoor or in Protective Kiosk

User Interface :

• Display : 3 Digit, 7 Segment LED Display of 0-100%
• Setup : Potentiometer and Push Buttons on main PCBA
• Units of Measurement : %age Depth

Output Signals :

• Analogue Output : 4-20 mA, max load 500 ohm
• Relays : 1, this alarms at 0 and 100% and is not adjustable
• Contacts : Contact Closure, 0.55 A @ 100VDC
• Local Annuication : 6 LED`s on main PCBA
