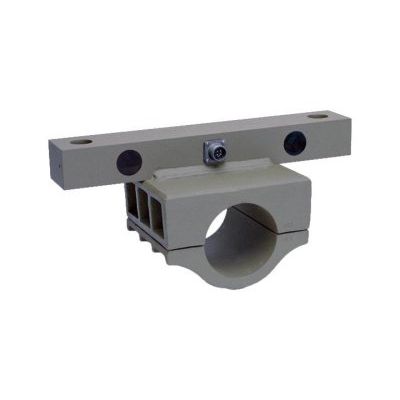

Vulcan - Single Point Load Cell
The Vulcan Single Point Load Cells are designed to fit a variety of trailers that use single point suspensions with 4” trunnion tubes. The load cells provide immediate weight information without adding substantially to trailer height or weight.
Most popular related searches
- atented double shear beam design
- Integral trunnion clamp
- Extremely reliable in the harshest environments
- Plated for corrosion protection
- Completely sealed, internal electronics
- Bolt-on design for easy installation and maintenance
- Reliable, military style connector
Single Point Load Cells
- Capacity: 60,000 lbs vertical load per system
- Accuracy: Typical system error less than .5% full scale
- Material: High strength alloy steel
- Output: 1.17mV/V at 20,000 lbs (each load cell)
- Finish: Vulcan load cells are cad/chromate plated for increased rust protection
- Note: Required for each trunnion clamp are six 5/8”-18 UNF x 2” long, Grade 8 hex cap screws, six 5/8”-18 UNF Grade 8 equivalent steel lock nuts, and six 5/8” hardened steel washers.
