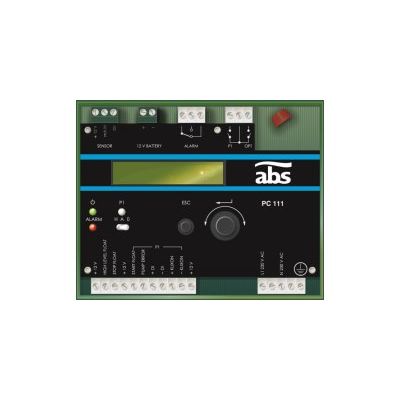

ABS - Model PC 111 -Single-Pump Controller
FromSulzer Ltd.
The PC 111 is a single-pump controller designed mainly for use in either gravitation or pressurized municipal wastewater pumping stations. Its many simple-to-use features improve pumping station functionality and reliability throughout its life-cycle.
Most popular related searches
pump controller
wastewater pump station
pump station
current transformer
wastewater pumping
municipal pump station
wastewater pump
municipal wastewater
float switch
pump control system
The controller comes with a 2x16 digit alpha numerical display offering a full user interface for low-budget applications. It can perform level sensing in the pit using either float switches or a 4-20 mA sensor. The selector knob and local display enable you to view alarms, manually control pumps, and change pump settings.
Accumulated and stored values
- Pump 1 start counters
- Pump 1 running time
Key software features
- Pump start/stop via 0/4-20 mA signal or float
- Man - 0 - Auto selector
- Built-in 10 amp current transformer
- Pump run confirmation via motor current or contactor feedback
- Pump stop after max runtime setting
- Delta cos-phi measurement for dry run protection
- Pump exercise run
- Emergency pump run timer on high float
