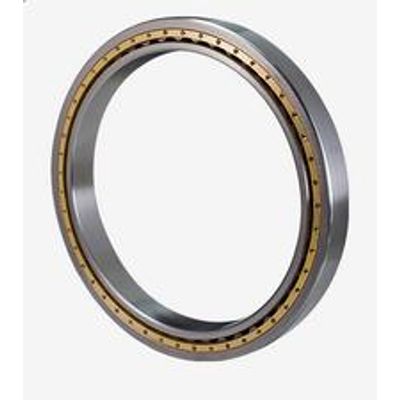

Huigong - Single Row Cylindrical Roller Bearing
A Single Row Cylindrical Roller Bearing is a type of rolling-element bearing that consists of a single row of cylindrical rollers. This design allows the bearing to handle high radial loads and operate at high speeds while minimizing friction and wear. The cylindrical rollers in this bearing are aligned parallel to the axis of rotation, providing a larger contact area with the raceways compared to ball bearings. This results in a bearing that is more efficient in supporting heavy loads and enduring demanding conditions.
Most popular related searches
- Features: The single-row cylindrical roller bearing is one separable type bearing. Generally, a single-row cylindrical roller ring consists of four major components as follows: inner ring, outer ring, rollers, and cage.
- Series Type: NU, NJ, N, NF series cylindrical roller bearing.
- Advantages:The single-row cylindrical roller bearing is one separable type bearing. Generally, a single-row cylindrical roller ring consists of four major components as follows: inner ring, outer ring, rollers, and cage. The rollers are typically guided by two ribs of bearing ring . This kind of bearing is easy to assemble,disassemble and applicable for high-speed rotation cases. So, compared with a normal radial ball bearing with same size, the cylindrical roller bearing is more suitable to the condition which require to bear higher radial load and higher impact resistance.Normally,it is not used to bear an axial load. It is required the angle between the axes of its inner and outer rings is slight, generally less than 4`. Profiling of the rollers and the raceway generatrix can reduce the inclination requirement somewhat. We manufacture single row cylindrical roller bearings are available in several designs. The main difference is the configuration of the flanges. The most popular designs are N design bearing,NU design bearing ,NJ design bearing,NUP design bearing.
- Size range: Inter diameter:120-1320mm
- Material: GCr15/GCr15SiMn/G20Cr2Ni4A
