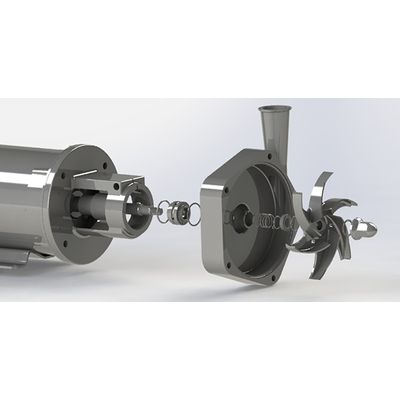

Ampco-PumpsModel LC Series -Single Seal Sanitary Pump

SHARE

The LC Series is cast and machined from 316L stainless steel and offers a 304 stainless steel adapter – always standard. Manufactured using heavy wall construction for durability, LC pumps are commonly used for gentle and efficient applications, such as beverage and dairy. Ampco’s LC Series is dimensionally and hydraulically interchangeable with most competing brands. The internal seal design, along with the dynamically balanced impeller, allows the LC smooth quiet operation while extending seal longevity.

Most popular related searches

Centrifugal Pump Features

  • 316L Stainless Steel Heavy Wall Construction
  • Cast and Machined
  • 304 Stainless Steel Adapter
  • Balanced Impellers
  • 316L Stainless Steel Shaft

LC Series Performance Overview

  • Models:  15
  • Max Discharge Pressure:  150 PSI / 10 BAR
  • Max Flow Rate:  800 GPM / 182 Mᵌ/hr
  • Max Viscosity:  1,200 cP
  • Seal Specifications:  3 Seal Options
