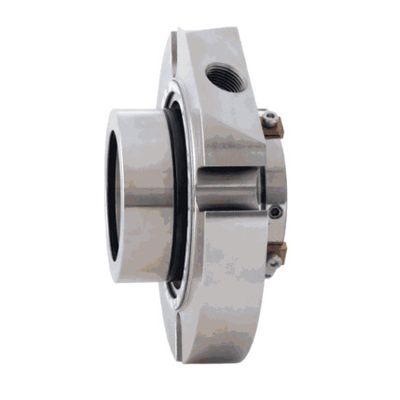

Sealmatic - Model CTX ANSI -Single Seals
Single seal configuration. Balanced design. Independent of direction of rotation. Cartridge construction. Available for standard (CTX-ASPN) and big bore (CTX-ABPN) seal chambers. Single seals with flush (-ASPN, -ABPN) and with quench combined with lip seal (-ASQN, - ABQN) or throttle ring (-ASTN, -ABTN).
Most popular related searches
process pump
ANSI pump
pharmaceutical water
chemical process pump
industrial water
chemical pump
industrial pump
- Ideal for use in ANSI process pumps
- O-ring is dynamically loaded to prevent shaft damage
- Dimensional modification of the stuffing box chamber is not required due to short radial installation height
- Ideal to convert and retrofit pumps with packings and large volume OEM production
- Cartridge unit factory assembled for easy installation, which reduces downtime
- Rugged design for long operating life
- ANSI process pumps
- Chemical industry
- Food and beverage industry
- Petrochemical industry
- Pharmaceutical industry
- Universally applicable
- Water and waste water technology
