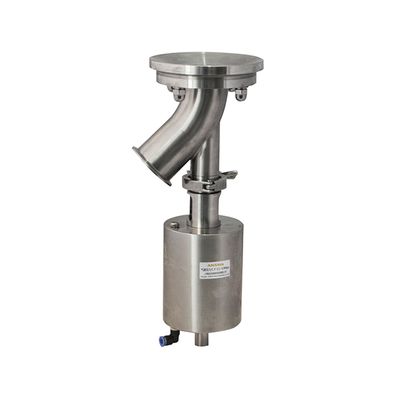

Ansha - Single Seat Tank Valve

SHARE

Single Seat Tank Valve can meet the high calss requirement of process for safety and sanitary, the valve used in tank bottom for material discharge in food industry, pharmacy industry and fine chemistry industry.

Most popular related searches
sanitary valve
proximity switch
solenoid valve
process safety
electrolysis
  • Specification: DN50~DN100?2.0”~4.0”
  • Operating Temperature:0~0.5Mpa
  • Air compressor Pressure: 0.5~0.8Mpa
  • Operating Temperature: -20?~+135?(According to seal material)
  • Body Material: 304/316L(Touch fluid parts)304(Not touch fluid parts)
  • Seal:  EPDM(Standard)Silicon Rubber, Vulcanized rubber,NBR (Option)
  • Operation: Manual, pneumatic
  • Acurator material: SS304
  • Surface: Ra<0.8(Touch fluid parts)Shot Blasting or Electrolysis(not Touch fluid parts)
  • Connection Standard: DIN series 2?3A?ISO1127 series 1
  • Connection: Welding,Clamp connection, Flange, Thread etc..
  • Spare Parts: Solenoid valve, Proximity switch, Intelligent controller etc...
