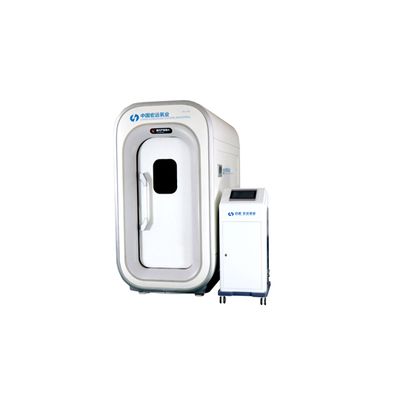

Yantai HongyuanSingle Seated Steel Chamber

SHARE

Easy to transport and assemble: The chamber body adopts a modular design concept and is light in weight. Users can assemble and customize their own product size like building blocks. Simple operation and high safety: One-button start; after the treatment is completed, the chamber door opens automatically, and it will prompt users to exit the chamber. Smart product , humanized design: The product is equipped with touch screens, temperature and humidity sensors, speakers, etc. in chamber, and set pressure sensors, oxygen concentration sensors, solenoid valves, etc. outside the chamber, there is a control cabinet outside the chamber, and the cabinet is equipped with touch screens, air compressors, controllers, and voice announcer, etc.

Most popular related searches
  1. Max. working pressure: 0.03MPa
  2. Chamber specification:1850*1100*2100mm
  3. Seating capacity: 1 person
  4. Chamber leakage rate: ≤15%/h
  5. Pressurizing medium: Air
  6. Oxygen concentration in the chamber: ≤23%
  7. Relative humidity: ≤80%
  8. Equipment pressurizing time: ≤10min
  9. Preheating time for oxygen generator: ≤30min
  10. Power supply: 220V 50Hz
  11. Working environment temperature: 0?~+30?
  12. Noise in chamber: ≤65dB
  13. Control method:

Automatic control: PLC automatic control
Manual control: manual control valve inside and outside the chamber(for emergency)
