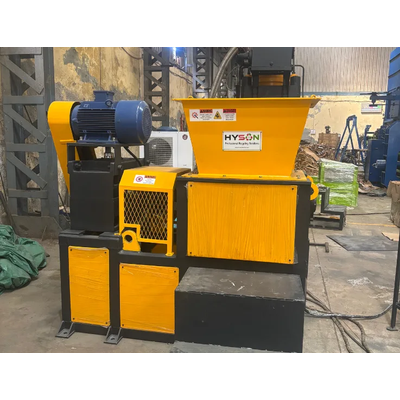

Hysan - Single Shaft Rotary Shredder
HYSAN Single Shaft Shredders are small to medium-sized size reduction machines designed to process a wide variety of materials into a uniform particle size. The output material can often be sold directly or further processed using additional equipment such as granulators, briquetters, and more. Typical throughputs range from 300 kg/hr to over 5,000 kg/hr, depending on the machine model, material type, screen size, and specific application. Here's a detailed overview of the Hysan Single Shaft Rotary Shredder, engineered for robust waste size reduction: Hysan Single Shaft Rotary Shredder – Precision Shredding for Tough Materials
1. Mono-Rotor Shredding System:
- Ø400-1000mm solid steel rotor: with replaceable tool mounts.
- Hydraulic push-wall: (5-15 bar adjustable pressure).
- 30-75 RPM: variable speed control.
2. Cutting Mechanism:
- Hardox 500 reversible knives: (6-12 blades standard).
- Screen-mesh sizing: (10-200mm selectable).
- Auto-gap adjustment: for blade wear compensation.
3. Power & Drive:
- 75-400kW: motor options (dual motor available).
- TORQUE-ARM™ gearbox: (3:1 to 10:1 ratio options).
- Soft-start system: prevents power surges.
- Option Feature: Hydraulics Pusher
- Automation Grade: Automatic
- Shredding Material: Waste
- Shredding Capacity: 1-500 kg/hr
- Shredding Machine Type: Cross-Cut
- Brand: Hysan
- Type: Single Shaft Shredder
* Specifications are indicative and are subject to change as per customer’s requirement and technical advancements.
