Enerpat - Model MSA-F Series -Single Shaft Shredder
MSA-F Series Single Shaft Shredders are small to medium size reduction machines suitable for processing a wide range of materials to a uniform particle size. The products can often be sold as is, or be sent for further processing through additional equipment. Throughputs typically range between300kg/hr –5,000kg/hr+ depending on the model, material type and application.

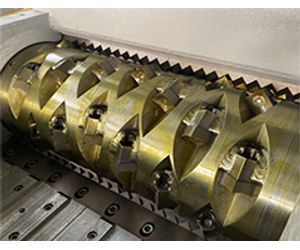

V type rotor knives layout design,special heat treatment knife material DC 53,4 sides can be used
The gaps between the rotor knives and counter knives can be adjusted.
The cutter shaft with surfacing treatment can be used for shredding hard materials like light scrap metals

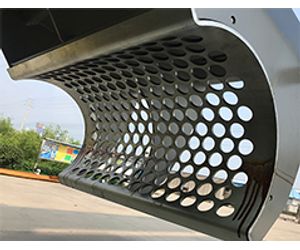

The screen can be changed conveniently,the end products size depends on the screen mesh size
Machine has screen supports,which been controlled by the hydraulic cylinder,with safety switch
Customized screen mesh design depends on different materials
The chamber adopting advanced seal design,with adjustable copper guide blocks and integrated front guide plate
Dust leakage groove -- The dust will be removed from this groove,good protection for the hydraulic system
High efficiency electric motor with star delta start,F1200 and F1500 with Hydraulic Coupler

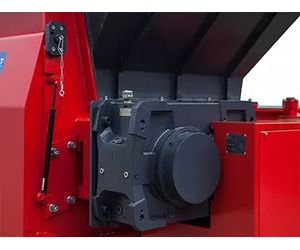

Heavy Duty Gearbox - Adopting high safety factor models,connect with the cutter shaft directly
Gearbox damping device - prevent damage for the power drive system
- The electric cabinet is equipped with a Siemens/Schneider PLC.
- The electric cabinet boasts a touch screen with a high capability of promoting human-machine interaction.
- Siemens/Schneider electrical components are adopted.
