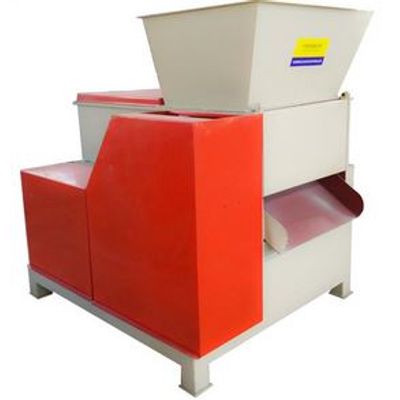

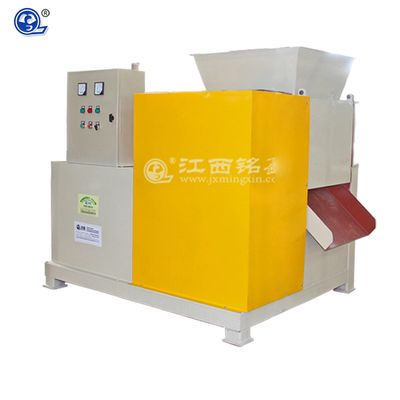

MINGXIN - Model MX-V600 -Single Shaft Shredders
Mingxin Series Single Shaft Shredder is mainly composed of mam shaft biade: fixed knife, box: feeding system, pushing system, power system and so on. It is the use of dynamic knife and fixed knife interaction, and through the screen to control the size of the discharge, the material will be torn, shear, extrusion processing to a smaller size. It is often used for the primary crushing of various plastic solid wastes, and can process the materials to a smaller size at one time. It is characterized by controllable discharge size, wide applicability of materials and high efficiency.
Most popular related searches
single shaft shredder
shredder
shredder-crusher
primary crushing
solid waste
solid waste processing
plastic waste
plastic waste processing
waste processing
- Feed size : 620*680 mm
- Crushed degree : 5-20 mm
- Speed : 65 r/min
- Capacity : 0.3-0.5 t/h
- Motor power : 22 kw
- Weight : Nude : 1700 kg
- After package : 1900 kg
- Equipment dimension (L*W*H) : Nude : 1900*1380*1620 mm
- After package : 2050*1500*1780 mm
- Blades(pcs) : Fixed:2 Moved:36 Alloy steel :SkD11
- hydraulic pump Power(kw) : 1.5
- Screen mesh size:20mm(Can be customized)
