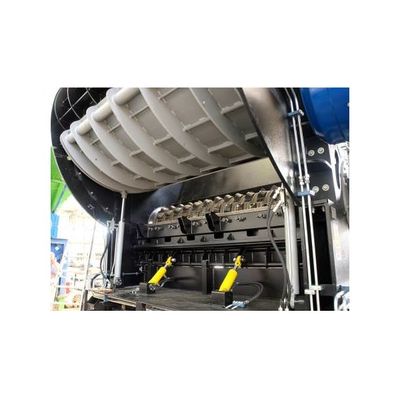

Forrec - Model X3000M -Single Shaft Shredders Potentiated
The XM single shaft shredder answers to high work standards and ensures a large productivity especially in the treatment of MSW, plastic materials, wood, rubber, paper, cardboard and industrial bulky waste. Enhanced in structure and performances, the XM grinders combine the traditional cutting system with a technology based on interchangeable plates equipped with special shock absorber bearing that protects from possible breakdowns. During the manufacturing of these single shaft shredders everything has been designed to ensure the maximum reliability, a fast maintenance and a considerable production increase.
- Electric driven machine
- Special steel blade-holder shaft with surface heat hardening to reduce wear
- Belt transmission with chain gearbox in oil bath
- Interchangeable wear-proof selection screen for a fast maintenance
- N. 2 radial hydraulic rams
- Spiral lateral seals for a safer working process
- Automatic greasing managed by PLC
- Use of high quality steels
- Configurable blades for thickness and number of teeth
Overall Dimensions:
6250 x 3750 mm H=3260 mm
Blades:
interchangeable plates
Rotor dimensions:
L3000 - Ø750 mm
Plates dimensions:
80 x 80 x 30 mm
Weight:
36000 Kg
No. of plates:
116
Motor drive:
315 kW / 355 kW
- Plastic
- Wood
- Paper - Cardboard
- MSW
- RDF
