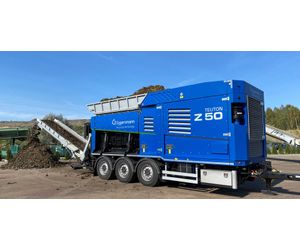

TEUTON - Model Z 50 -Single Shaft / Universal Shredder

SHARE
Control: IFM 7” touch panel + radio system with display. Diesel engine: 6 cylinder Cummins X12 diesel engine; large capacity combination cooling system with stepless, reversible fan. Total maximum weight: 25 t (3-axle chassis central axle chassis trailer). Minimum possible maintenance requirement with long maintenance intervals (max. 500 hours). Heavy-duty design and construction makes it impervious to foreign bodies. Neodymium magnetic separator enables ejection of metal scrap on both sides. Hydro-mechanical drive, continuously variable control of rotor speed. Maximum rotor diameter: 1,050 mm Ø. Length of rotor: 3,000 mm.
Most popular related searches
single shaft shredder
universal shredder
shredder
green waste
shredded wood waste
bulk waste
cooling system
tire shredding
mobile shredding
scrap metal

The wide range of applications with the new generation of Eggersmann TEUTON universal shredders is impressive and virtually inexhaustible. The TEUTON series of machines is just as efficient at shredding waste wood, roots, green waste or bulky waste as they are at shredding tires, plastics, mattresses or batches of special and mono-material. Like the other TEUTON shredders, the TEUTON Z 50 also has replaceable shredding tools. Where necessary, depending on the type of application, these can be selected and easily changed quite quickly.

The optional screening basket system makes it possible to shred material down to a marketable product size in a single pass. Another important feature of the machine is the large and wide conveyor belts, which enable material discharge, free from jamming, with all applications. The material discharge-height is up to 5 metres. The conveyor belt speed is steplessly adjustable.
