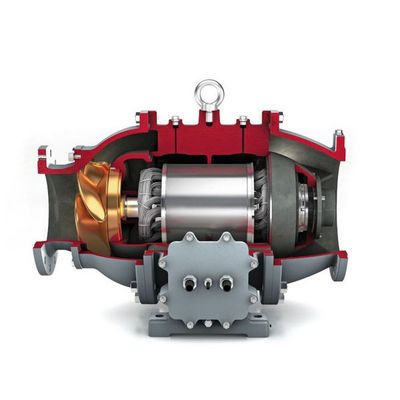

Oddesse - Model Type: po-upl / po-upl-s -Single-Stage Centrifugal Propeller Pumps
Single-stage centrifugal pumps with open half-axial impeller with asynchronous three-phase or permanent magnet synchronous motor for pumping clean and slightly contaminated water.
Most popular related searches
centrifugal pumping
centrifugal pump
propeller pump
three-phased permanent magnet- synchronous motor
water level regulator
life cycle cost
inline pump
sewage treatment plant
axial impeller
water pump
- Delivery rate: 1.150 m3/h
- Delivery head: 35 m
- Performance: 55 kW
- Voltage: 500V
- Type of current: 3-
- Frequency: 60 Hz
- Degree of protection: IP68
- Ambient temperature: 50 ° C
- Irrigation and drainage of agricultural land
- Water level regulation (pump station and polder pumps)
- Circulation of water in sewage treatment plants
- Oxygen enrichment of fish farm rearing waters
- Trimming ships, ferries and tankers
- Draining or flooding of floating docks
- Emptying or flooding of tanks
- clean or slightly dirty water with a solids content of up to 50 mg/l
- fresh water, sea water and brackish water
- Pumped medium temperatures up to 50 °C
- single-stage centrifugal pumps with open semi-axial impeller
- submersible, rewindable and water-filled motors with protection class IP 68
- also available as a highly efficient permanent magnet synchronous submersible motor
- motor cooling through pumped medium that flows around it
- water-lubricated, radial and axial slide bearings
- motor encapsulation by mechanical seal
- optimal motor filling guaranteed by a volume-compensation system
- rubber-sheathed electrical cable, watertight connected
- continuous operation, switching operation or frequency control
- Operation of the po-upl-s only possible with frequency converter
- tandem operation
- high-quality materials for application in service, industrial and sea water
- installation in vertical or horizontal position
- operation as in-line pump or submerged
- tandem and back-to-back arrangement possible
- excellent cooling thanks to water-filled motor and pumped medium flowing around the motor
- rewindable motor encapsulated via shaft seal, no mechanical feed-through to the outside
- adjustable by frequency converter
- long maintenance-free run times
- low repair costs
- low plant and operating costs
- environmentally friendly – fully recyclable
- comprehensive service network
- Impeller: CuSn10/ 2.1050
- Casing: Grey cast iron GG25 / 0.6025 / CuSn10 / 2.1050, CERAM coating possible – offers protection against corrosion and minimises life cycle costs.
- Shaft: Stainless steel
- Radial bearing: Bronze / stainless steel
- Mechanical seal: SiC / SiC
