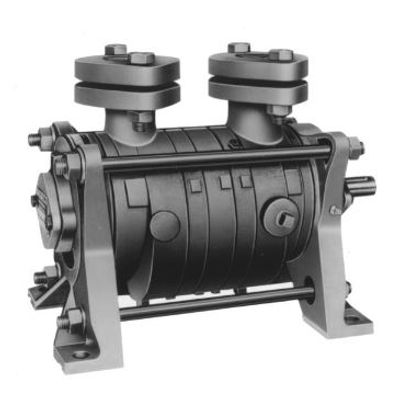

Flowserve-SIHI - Model LOH -Single-Stage Displacement Pump
Liquid ring vacuum pumps of the series LOH aresingle-stage displacement pumpsof uncomplicated and robust construction with the following particular features likehandling of nearly all gases and vapours, non-polluting due tonearly isothermal compression,oil-free(no lubrication in the working chamber), small quantities ofentrained liquid can be handled, easy maintenance and reliable, low noise and nearly free from vibration, wide choice of material (therefore applicable nearly everywhere), incorporated central drain and no metallic contact of the rotating parts.
Handling and exhausting of dry and humid gases. Entrained liquid can be handled during normal duty. The pumps are applied in all fields where apressure of 150 to 900 mbarmust be created by robust vacuum pumps. Fields of application are for example thechemicalandpharmaceutical industry(distilling and degassing), theelectric industry(impregnation and drying), theplastics industry(degassing) andmany more.
- Suction volume flow: up to 58 m³/h
- Suction pressure: 150 up to 1013 mbar
- Shaft seal: mechanical seal
- Materials: grey cast iron, stainless steel
