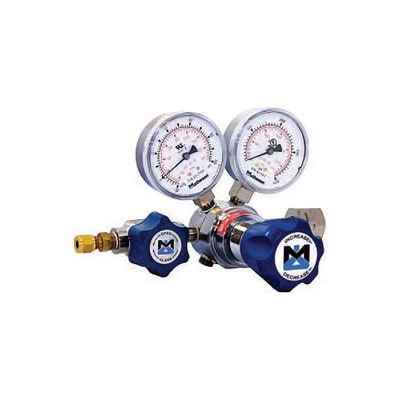

Matheson - Model 3530A Series -Single-Stage High-Purity Brass Regulator
High-purity regulators designed for analytical applications. Use with non-corrosive gases.
Most popular related searches
on-line process analyzer
emissions monitoring system
emissions monitoring system engineering
on-line process monitoring system
gas detection system
process emissions monitoring
chromatography application
diaphragm valve
process analyzer
corrosive gas
- High-purity chrome plated brass barstock body
- High-purity 316 stainless steel diaphragm
- Metal to metal seals minimize diffusion of contaminants
- 2-1/2” inlet and delivery pressure gauges
- Equipped with outlet diaphragm valve
- Bonnet ported and threaded to pipe gases away from work area
- 1/4” compression tube outlet connection
- 10 micron metal filter protects seat from contamination
- Panel mountable, front bonnet thread and back (10-32 UNF)
- Bonnet vent hole size: 1/8” NPTF
- Supply of carrier gas/detector support gas for a variety of gas chromatography applications (see table below for details)
- Supply of calibration standards to on-line process analyzers, emission monitoring systems, etc.
- Gauges: Chrome plated brass
- Body: Chrome plated brass barstock
- Bonnet: Chrome plated brass barstock
- Diaphragm: 316 stainless steel
- Seat: Teflon
- Seals: Metal to metal
- Maximum Inlet Pressure: 3000 psig (20,700 kPa)
- Maximum Flow Rate: Model 3531A: 650 SCFH (305 SLPM)
- (At 2000 psig, N2) Model 3536A: 3000 SCFH (1410 SLPM)
- Model 3537A: 1100 SCFH (517 SLPM)
- Model 3538A: 4500 SCFH (2115 SLPM)
- Model 3539A: 2400 SCFH (1128 SLPM)
- Flow Capacity (Cv): 0.08
- Operating Temperature: -15°F to 140°F (-26°C to 60°C)
- Porting (Regulator Body): 1/4” NPT Female
- Porting Configuration: 3 High, 3 Low
- Shipping Weight: 5 lbs
