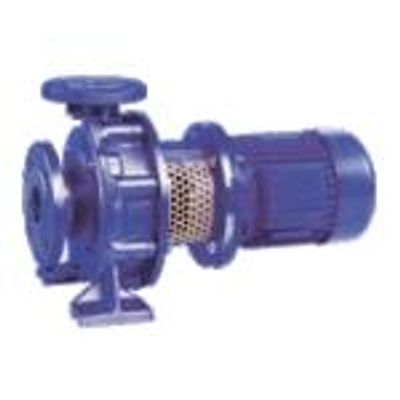

Flowserve-SIHI - Model SuperNova ZLK -Single-Stage Volute Casing Pump
Pumps of the series SIHISuperNova ZLK aresingle-stage volute casing pumpswith connections and nominal performances according toEN 733 / DIN 24255, plus 6 additional sizes. The design of the pump allows the complete drive unit to be withdraw from the casing without disturbing the attached pipe work. The close coupled design, also, allows dismantling or replacing the motor without disturbing the pump. There is no common shaft for pump and motor, standard motors can be used. The set is a space saving easy to install pump unit.
Volute casing pumps of the ZLK range are used whenclear or turbid liquids free from solid particles are to be pumped. Application areas for pumps in this range includeautomobile,mechanical and general engineeringindustries,food and beverageindustry,pharmaceuticalindustry,paintindustry,plastic and rubberindustry,iron and non-ferrous metalindustry,paper and pulpindustry,textileindustry,building and constructionindustry,heating and air conditioning,drainage,water supplyandirrigation.
- Flow rate: up to 740 m³/h
- Head: up to 90 m
- Speed: max. 3,600 rpm
- Temperature: max. 120 °C
- Casing pressure: up to 16/10 bar
- Shaft seals: mechanical seal
- Materials: grey cast iron, nodular iron, stainless steel
