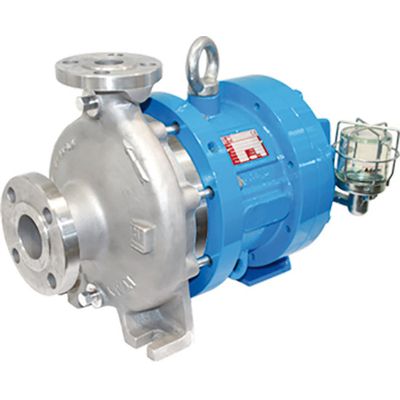

M Pumps - Model CN MAG-M -Single Stage Volute Casing Pump
M PUMPS CN MAG-M are a single stage volute casing pumps with closed impellers, back-pull-out design, with end suction and top discharge flange.
CN MAG-M pumps range meets the requirements on custom-built solutions in the process industry, in the following areas:
- Chemical and pharmaceutical, petrochemical
- Refineries
- Paper,
- Plastics
- Food processing
- Plant engineering and construction
- Refrigeration systems.
For all industries that choose a pumping leak-free and low maintenance for use continuous (abandon of mechanical seal pumps).
Pumps of the series CN MAG-M are horizontal single-stage volute casing pumps
It is a modular configuration of either bare shaft end or close-coupled design.
Close coupled pumps are furnished with standard motors. Leak-free back pull-out assemblies with magnetic drive meet the requirements with regard to job safety, operational reliability and environmental protection.
The program comprises 39 sizes, divided in 5 Ranges,
- Direction of rotation: Counter-Clockwise, seen from the suction side
- Connections: DIN 2501 / PN16 or DIN EN 1092-2 / PN 16, ANSI B16.5 150 /300 lbs
- Casing pressure: From PN 16 to PN 50
- Temperature: from -185 °F (-120 °C) to +662°F (+300°C)
- Speed: 1450 / 3500 rpm
- Delivery Head: Up to 722 ft (220 m)
- Capacity: Up to 17600 gpm (4000 m3/h)
Construction materials:
- Main material class: CF8M
- Sealing system: ISOLATION SHELL Hybrid-HC276 or TITANIUM GR5
- Radial Journal Bearings: SiC / M-CARBON
- Gaskets: PTFE
Custom materials:
- Main material class: DUPLEX 22CR/ INCOLOY 825/ TITANIUM GR2/ ALLOY 20
- Sealing system: ISOLATION SHELL Zirconium Oxide
- Radial Journal Bearings: TC
- Gaskets: Armored graphite
