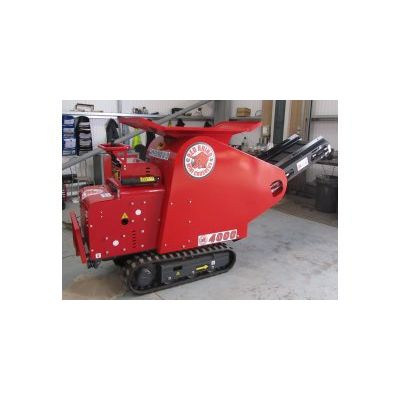

Red Rhino - Model 4000 Series -Single Toggle Jaw Crusher

The only small crusher to accept a full UK kerbstone! The 4000 can travel through doorways, into rear gardens and enter sites where access and space is restricted.

The 4000 series has a jaw aperture of 400mm x 170mm

Unique to this crusher is its 775mm wide and can travel through doorways, into rear gardens, and enter sites where access and space is restricted. Instantly hydraulically adjustable jaws allow for the adjustment of output product size, ranging from 10mm right through to 70mm.

A small crusher that makes a massive difference

• Material: The 4000 series will crush concrete, kerbstone, marble, paving slabs, bricks, tiles, blocks, stone, porcelain, flint, gravestones, etc.
• Output: Output will vary according to jaw setting, loading method, loading equipment, input material, and familiarity of the loading operator. In excess of 6 tonnes per hour has been achieved!
• Jaws: Instant hydraulic adjustment lever allows for the quick release of material and adjustment of product size. A hydraulic ‘reverse’ action is also provided along with a hydraulic pressure relief valve and further safety features fitted as standard. Jaw plates are made of 14% manganese steel which will ‘work-harden’. The jaws are ‘reversible’ meaning that they have 2 lives.
• Reinforced Concrete: For reinforced concrete and steel it is recommended that you protect your conveyor belt and crush this material having removed the conveyor belt. Removal of the output conveyor system is quick and easy.
• Engine: The engine is a Perkins 14hp water cooled diesel with a maximum rpm of 3600. The engine is economical using red or white diesel. The fuel tank capacity is 10 litres, with one litre of fuel lasting approximately 30 minutes.
• Tracks and Controls: Tracks are rubber and controlled by hydraulic levers. A fast-track lever is available for straight line tracking. Controls are simple and clearly labelled. A hydraulic oil cooler is fitted to ensure longer life of hydraulic equipment and for hotter climates.
• Dust Suppression: Dust suppression is fitted as standard and is by means of fine water spray nozzles, utilising standard domestic hose pressure. The output conveyor is simple in design with a moulded belt providing strength and durability. The conveyor system can be removed in one minute to allow access for cleaning.
• Loading: Maximum productivity is achieved by correct loading of the crusher; this is a steady feeding of the jaw aperture ensuring that the jaw or hopper is not over-loaded. Loaded by hand or with a maximum 1.5t mini excavator using a maximum 10 inch bucket, a steady feed method should be employed as this will produce maximum tonnage per hour. Overloading or swamping the hopper or jaw will reduce output.
• Screener: An optional conveyor mounted screener is available for the separation of dust and topsoil from the crushing process.
• Attachment (optional): Supplied with a 10mm mesh, the screener can also assist with the creation of decorative aggregates.
• Safety & Maintenance: There are two emergency stop buttons located to the front and rear of the machine; both access panels are fitted
