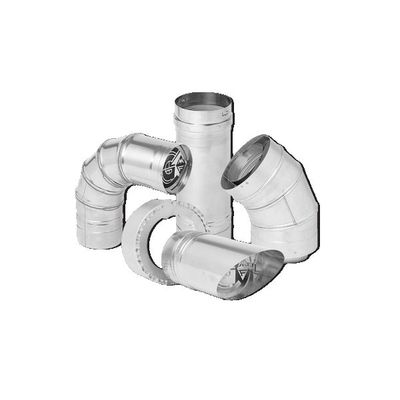

Metal-Fab Corr/Guard - Model CG/CGV 3-5Inch -Single Wall & Double Wall Special Gas Vent
FromMetal-Fab, Inc.
Corr/Guard products are tested and listed to UL 1738 for positive pressure applications up to 15" w.g. Corr/Guard features our exclusive Snap-Lock design in single wall and male to female slip connection in double wall, secured with self-tapping sheet metal screws. Manufactured from superferritic AL29-4C stainless steel flue for corrosion resistance and continuous laser welded seams creates proper joint alignment, increasing product reliability and ease of installation in the field.
Most popular related searches
- Listings/Standards:
- NFPA 54
- UL 1738
- ULC-S636
- Construction
- Flue Material Thickness: 3" - 5"/.015, AL29-4C (Standard) or 444 stainless steel (Optional)
- Casing Material Thickness: 3" - 5"/.018, aluminized (Standard), 430, 304, or 316 stainless steel (Optional)
- Diameters : 3" - 5"
