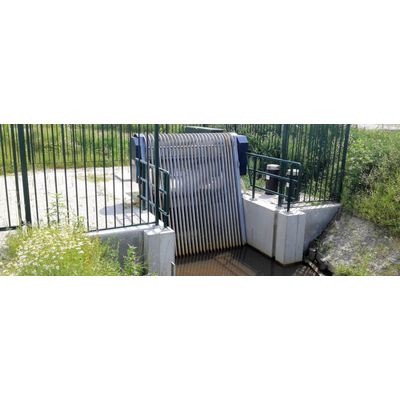

The LANDY designed and manufactured back-raking screen is a device constructed from galvanized steel or stainless steel, comprising an adjustable transport chain driving a bar with an attached rake. This type of screen is predominantly used on smaller pumping stations with intakes up to channel widths of 4 meters and water depth up to 4 meters. As a result it is particularly suitable for single water intakes.

Most popular related searches

back raked screen

water management

water intake screen

Due to the compact and robust design of this machine almost no maintenance is required. The cleaner is driven by a low power extremely durable drive unit. This drive unit is positioned in such a way that it’s easily accessible for inspection and maintenance.

compact and easy to operate
low overall height
low noise
not affected by frost
few moving parts
quick mounting/demounting
low maintenance
optional: automatic debris removal

On custom request we can deviate from standard material and dimensions.

Depth of intake: 1600 - 3600 mm
Overall width of intake: 1500 - 4000 mm
Depth of bar screens: 75 - 80 - 100 mm
Moving finger bars: 1 or 2
Finger length: 150 or 200 mm
Screen: hot dipped galvanized or ss
Screen bars: 80 x 15 mm
Deposit height: 1400 mm above deck
Drive: conical wheel reductor
Power: 0,75 - 1,5 kW
Chain: ss 304, rivetted
Tensioner: yes (above water)
Bottom bearing: water lubricated
Emergency stop: 2
Main switch: 1 (under cover)
