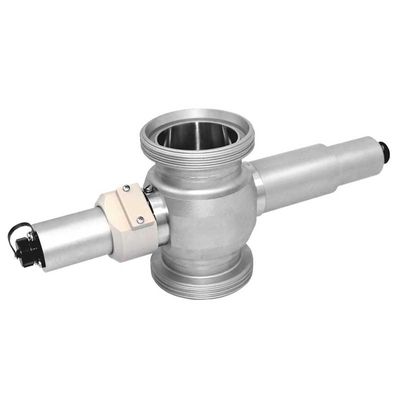

optek - Model AF16-F -Single Wavelength VIS Absorption Color Sensor
High precision sensor for direct installation into pipelines measuring VIS or NIR light absorption of various liquid samples. Wavelength and optical path length can individually configured to meet the process control requirements with the highest accuracy.
Most popular related searches
color sensor
UV absorption sensor
color measurement
liquid sampling
pipeline monitoring
VIS-NIR
wavelength calibration
The model AF16-F is a single channel absorption sensor designed for inline applications. It accurately measures color or color changes and can be used in a variety of industrial processes, from sanitary CIP/SIP applications to high pressure, high temperature industrial applications. The AF16-F uses light in the wavelength range from 385 to 1000 nm at selected wavelengths. Optical path lengths (OPL) are available from 1 to 1000 mm for process versatility.
- inline color measurement in demanding process conditions
- Fast and accurate color measurements
- High dynamic measuring range
- Different wavelength modules available
- Optional calibration accessories
- No sampling or by-pass installation needed
- immediate detection of color changes to verify product quality
- No change or adaptation of sensors necessary
- Application optimized configuration
- Easy on-site / on-demand verification of accuracy and linearity
