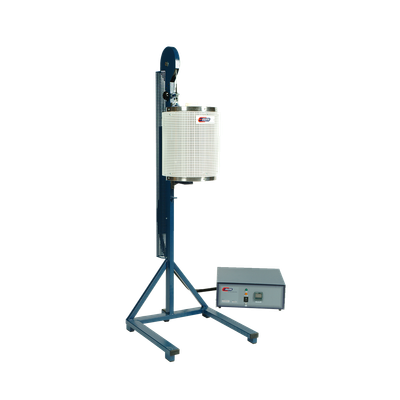

Sylab - Model TSV12-SY -Single Zone Vertical Tube Furnace
The TSV12-SY furnace is a vertical-mounted tube furnace with a separate control console, ideal for most general laboratory thermal processing applications. Special arrangement via resistance wire wound onto a ceramic worktube which is an integral part of the furnace gives optimum temperature uniformity throughout the furnace.
Most popular related searches
single-zone tube furnace
tube furnace
high temperature furnace
furnace
digital temperature controller
thermocouple
radiation shielding
multi-gas
process gas
- The furnace design incorporates an integral elemental tube.
- Protective outer mesh covers for improved operator safety.
- Low thermal mass insulation is used throughout for rapid response rates and maximum efficiency and stability.
- For aggressive processes, a separate work tube is recommended to minimise the risk of contaminating the elemental work tube.
- A rugged metal sheathed control thermocouple is protected from accidental damage and allows full use of work tube bore.
- `N` Type thermocouple is used in these furnaces.
- These models are supplied as separate control console remote from furnace, separated by two meters of flexible inter-connecting cable.
- ELITE PID controller offering 8 programs with 8 segments each.
- Work tubes of various materials, lengths and diameters for use in the furnace
- The work tubes are available for containment of atmosphere or protection against process contaminants.
- A variety of triple flange gas tight end seals for work tubes to allow processing under vacuum or gas atmospheres.
- Multi segment, multi program storage controller
- Over temperature protection controller.
- Thermal Radiation Plugs/Screens/Shields.
