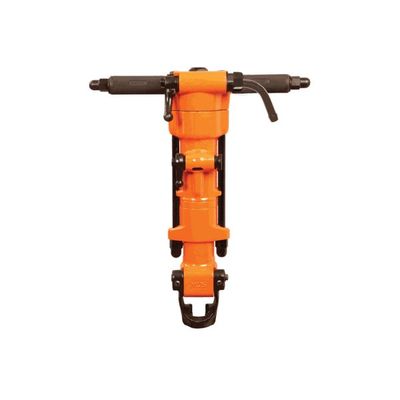

BTE - Model MH505L -Sinker Drill
Powerful lightweight sinking hammer with the ability to drill up to 20 feet deep. This unit comes with standard air flushing and a 7/8" x 4-1/4" chuck size.
- Weight: 24 kg 53 lb
- Length: 565 mm 22 in
- Stroke Length: 59 mm 2? in
- Air Consumption: 58 l/s 123 cfm
- Penetration Rate: 425 mm/min 17 in/min
- Hose Connections Ø 19 mm Ø 3/4 in
- Piston Diameter: 65 mm 2½ in
- Max Drilling Diameter: 40 mm 1? in
- Max Drilling Depth: 6000 mm 20 ft
- Impact Rate: 2040 BPM
- Revolutions: 215 RPM
