DEZE - Sintered Wire Mesh Filter
Sintered wire mesh is made of multilayer wire mesh combined by sintering. So this creates a new class of materials with a very wide range of mechanical properties. By combining multiple layers of different grids for weaving, materials with a specific target thickness, permeability, aperture, and mechanical strength can be designed. Some of these layers are used for high precision filtering and others for protect and reinforce the filters.
- Good permeability
- Easy cleaning, especially bak washing owing to the surface
- High mechanical strength
- Good corrosion resistance
- No immigration of materials.
Sintered Filters has filter medium has the advantages of simple processing, easy cleaning and long sendee life. Common application materials are stainless steel types 304L and 316L. Foreign metals or alloys may also be used. And filtering ranged from approximately from 1 to 60 microns.

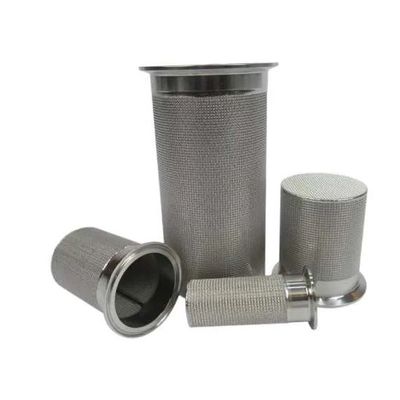

Sintered mesh or lamination can be processed into filter basket, cylinder, tube, filter net, mesh plate or medicinal filter plate / sheet and other forms of filter elements. Six-layer sintering mesh are widely used in three-in-one medicinal filter plates, mainly for filtration, washing and drying. Normally it is made of five layers of sintered mesh plus a layer of 12-mesh woven wire mesh, with a thickness of 3.5 mm.
Sintered Wire Mesh Filter has the following characteristics:
- High filtration accuracy: large filtration accuracy extension (1-100 m), and the hole is not easy to deform.
- High strength and good rigidity: because the fourth and fifth layers of the sintering network are the support layer, and the sixth layer is the reinforcement layer, so they with high mechanical strength, good pressure resistance, installation and use are very convenient.
- High temperature resistance and corrosion resistance: up to 48o°C.
- Easy to clean and backwash and longer service life.
Sintered Wire Mesh Filter are ^videly used in the recover)` and separation of solid particles, the filtration and purification of liquids and gases, transpiration cooling at extreme high temperatures, control of airflow distribution, enhanced heat transfer and mass transfer, noise reduction, flow limiting, etc. Applied in aerospace, petrochemical industry, pharmaceutical industry, environmental protection industry, etc.
- Material: S304, SS316, SS304L: SS316L: Copper, Titanium, Inconel, Hastelloy, Monel, etc.
- Wire Diameter: 0.02-6.5mm
- Mesh Count: 1 mesh-1500mesh
- Wea: ing Types: Plain Wea: e. Twill Wea: e. Dutch Wea: e.etc
- Hole Shape: Square. Round. Hexagonal, Slotted,etc
