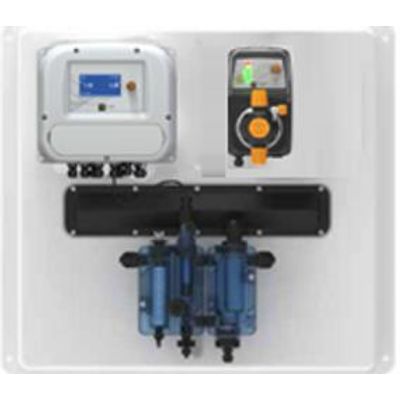

SISTEMA MONTADO EN PANEL AS2H

The panel includes:

• N°1 AE-START+ CL (J) controller
• N°1 Pump HC151+ PIMA M70
• N°1 water filter
• N°1 Probe-holder complete of flow sensor and flow regulator A-JmV;
• Standard power supply 90-260V.

A-J START+ is predisposed to connect A-J probe. It`s possible to set the measure range by the user menu:

• 0-2,00 ppm
• 0-5,00 ppm
• 0-10,00 ppm
• 0-20,00 ppm
• 0-200,00 ppm

To control the following parameters:

• Free chlorine
• Hydrogen peroxide
• Chlorine Dioxide
• Ozone
• Peracetic acid
