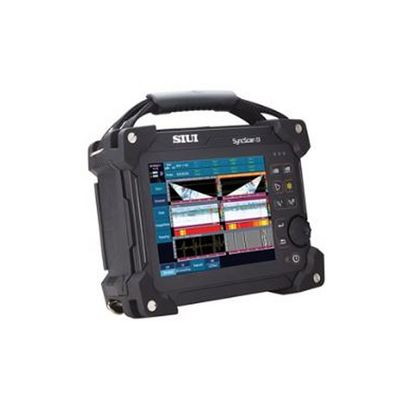

SIUI - Model SyncScan 2 -Phased Array Ultrasonic Flaw Detector

FromShantou Institute of Ultrasonic Instruments (SIUI) Co., Ltd.

SHARE

SyncScan 2 is a 32:128PR PAUT flaw detector with optional 2-ch TOFD, which can improve your efficiency for PA and TOFD.

Most popular related searches

pressure vessel inspection

ultrasonic flaw detection

phased array flaw detection

corrosion inspection

thickness monitoring

non-destructive testing

Light weight: 4kg only including battery.
Faster scan speed (Approximately 3 meters/minute).
Removable electric fan: cool down the system when in high temperature.
1 or 2 ch-TOFD for your selection by license activation.
Support UT/PA/TOFD, suitable for weld, forging and plate inspection.
32-channel PA is more suitable for inspection on extra-thick wall and high-attenuation material.
32-channel PA and 2-channel TOFD work simultaneously on pressure vessel inspection (TOFD can measure thickness up to 100mm).
Support pitch and catch (PR) mode, corrosion inspection with dual linear array probe.
System ports:Encoder (support biaxial coding),SD card, USB 2pcs,VGA, Ethernet.
Probe ports: 4 ports for UT/TOFD probes, 1 port for PA probe.
