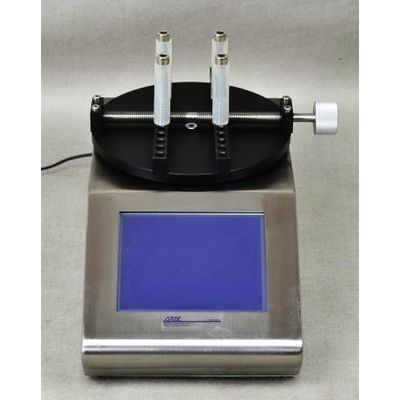

Six-T7 - Model TMV5 -Touch Screen Electronic Torque Tester
FromSix-T7 GmbH
Our torque testers are designed with a special mechanical system for measuring torque which cancels most non-coaxial and top load influences on the measurement. These features cancel most operator induced influences on the measurement for maximum repeatability.
Most popular related searches
- Touch screen display
- Measures opening and closing directions
- 0.030 to 4.000 Kgf.cm in high accuracy mode
- Measuring range: 00.00 to 99.00 Kgf.cm
- 3 measuring modes (mean, peak, peak+infos)
- Units: Kgf.cm / Inch.lbs / daN.cm / N.m / N.cm
- Accuracy: +/- 0.5 % of full scale
- 100 product memory with 4 limits each
- 4 thresholds by product (V Low, Low, High, v High)
- 20 operators memory
- Setting of files by administrator code
- Store and transfer up to 990 measurements
- Message + bar graph of torque value
- Dynamic display: statistics, hour, date
- Display: product name, operator, batch N°, line N°
- 1 RS232 output for software & 1 printer output
- Language: French / Italian / Spanish / English
- Delivered with COFRAC calibration certificate
- AC 110 - 240 V 50/60 Hz
- Stainless steel frame
- Dimensions:
- 310 (L) x 220 (W) x 230 (H) mm(agro table)
- 310 (L) x 262 (W) x 260 (H) mm(cosmetic table)
- Choice of measuring table: Agro / Cosmetic
- Weight: 7kg
- Optional battery
- QUALITORQ Software
- Easy / Safe opening bloc
- Mini printer
- Calibration pack
- Portable case
