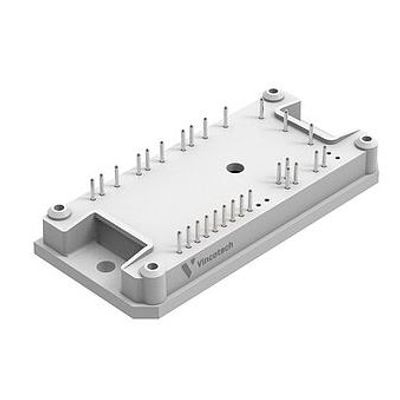

Vincotech flowPACK - Model 1 + R - 10-F112R6A050SC01-M430E18 -Sixpack Rectifier
FromVincotech GmbH
Part number: 10-F112R6A050SC01-M430E18. Product line: flowPACK 1 + R. Product status: Series production. Break down voltage: 1200 V. Nominal chip current rating: 50 A. Standard Packing Quantity: 100.
Most popular related searches
- Topology: Sixpack+Rectifier
- Inverter+Rectifier
- Kelvin Emitter for improved switching performance
- Temperature sensor
Chip technology (main switch): IGBT4
- Easy paralleling
- Low turn-off losses
- Low collector emitter saturation voltage
- Positive temperature coefficient
- Short tail current
- Base isolation (e.g. ceramic): Al2O3
- Electrical interconnection: Solder pin
- Module housing: flow 1
- Mechanical connection to the PCB: 4 towers
- Footprint: 82 mm x 37.4 mm
- Height: 12 mm
- Convex shaped substrate for superior thermal contact
- Thermo-mechanical push-and-pull force relief
