Erskine Attachments LLC

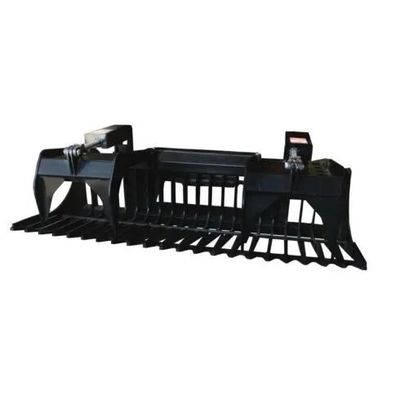

Skeleton Grapple Rock Bucket

SHARE

The Grapple Skeleton Rock Bucket is engineered to pick rocks and debris from the soil with the added feature of independent grapples to secure a variety of materials. Extra long tines allow you to carry larger loads. Gusseted tines make this attachment versatile for rooting and back dragging as well.

Most popular related searches
  • Open design for excellent operator visibility
  • Extra long tines for carrying larger loads
  • Tines designed to keep material from rolling forward
  • 3/8″ Grade 50 steel bucket construction
  • Gusseted tines for added strength
  • Excellent for rooting and back dragging
  • Independent grapples for uneven loads

Model : 60" : 72" : 84"

Part Number : 925044 : 925045 : 925046

Weight : 630 lb. : 670 lb. : 715 lb.

Width : 60" : 72" : 84"

Depth : 28.625" : 28.625" : 28.325"

Spacing Between Teeth : 3.0625" : 3" : 3.25"

Maximum Grapple Opening : 38.75" : 38.75" : 38.75"

Height (closed) : 27.25" : 27.25" : 27.25"

Height (open) : 42.625" : 42.625" : 42.625"

Hydraulic Cylinders : 2"x10" (2) : 2"x10" (2) : 2"x10" (2)

Bucket Steel Construction : Grade 50 : Grade 50 : Grade 50

Bucket Tine Thickness : 3/8" : 3/8" : 3/8"
