McLaughlin - Model M-4500 Series -Skid Steer/Mini Excavator Attachments
The M-4500 series hydraulic boring attachments are available in four distinct configurations: M-4500, M-4500SS, M-4500MS, and the M-4500ME. Powered by hydraulics, the units are capable of producing bores up to 4-1/2″ diameter using the dry compaction boring method of drilling. Speeds of 8′ per minute and distances of 100′ are possible depending on soil conditions.
The original M-4500 is attached to the skid steer bucket with a weld on bracket and boring attachment can quickly be installed and removed with a pin connection
The M4500SS comes with a quick attach back plate and has (3) different pin in place boring positions for the moleing attachment to allow for center, left and right attachment positions for working close to buildings or existing structures.

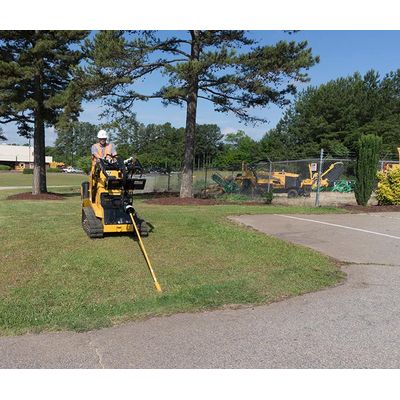

The Mini Skid Steer boring attachment includes quick attach back plate and moling attachment center mounted with quick detach pin kit.
The McLaughlin Mini Excavator attachment works with any mini-excavator bucket and is a wedge design that attaches to the bucket blade and is strapped in place.
- Bore Diameter: 1-1/4″ to 4-1/2″ (3.2 cm – 11.4 cm)
- Motor: Hydraulic with forward/reverse
- Torque: 530 ft/lbs. @ 2500 psi
- Rotation speed: 80 rpm @ 8 hpm
- 25″ W x 30″ L x 22″ H
- 115 lbs.
