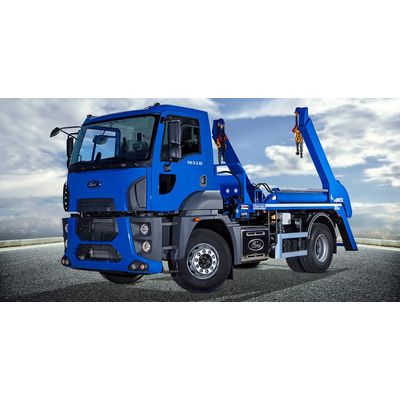

HidroMak - Skip Loader

SHARE

The Skip Loader design to carry containers of uncompactable solid waste has structure which extension arms, too, can be added to acoording to the need. Stabilazation legs (jacks) can be made horizontal or vertical depending on the load state. There are available on it, a total number of six hydraulic and pneumatic cyclinder for hook holding system, these being, two numbers of lifting or extending and suppression.

Most popular related searches

waste management

hydraulic pneumatics

Remote Control cable type)
loadin and unloading are easy to use with Remote Control

Telescopic Arms
Teleskopic arms help to unloading and placing container according to condition.

Skip Loader Capacities and Lengths

Lifting Capacity (max): 10.000 kg
Reach Lenght: 2600-3700 mm
Max. Container Volume: 10 m3
Max.Interior Loading Platform Width: 2030 mm

Skip Loader Hydraulic Specification

Hydraulic Pump: According to Skip Loader Truck
Max. Operating Pressure: 220 bar
Oil Tank Volume: 120-140 lt

Process Times

Container Lifting Cycle: 45-60 sec
Container Unloading Cycle: 40-55 sec
Extension Arm Retraction of additional Arms: 10-20 sec
Stabilazition Jacks Cycle: 10-15 sec
P.S.: Process times according to the average values of the pump operating Rate
