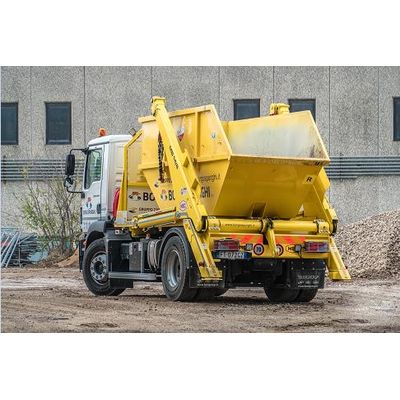

MEC - Model MB Series -Skiploader
The Skiploader MB from MEC is manufactured using the best technology for long-lasting quality and is available in two versions:
- with fixed arms, which is characterised by its ease of use and great robustness
- with removable arms, the most versatile of the family
Both versions are also available in kit format.
EXTENDABLE ARMS:
Thanks to the hydraulically extendable telescopic arms, it is possible to complete the picking up of the skip even in complex situations, such as at a distance from the truck.
The independently controlled hydraulic extension arms allow for precise load adjustments. The connection shaft of the arms, positioned underneath the platform, allows for height clearance and the loading of skip buckets with larger cubage. With the removable arm range, it is possible to load several buckets stacked, reducing the number of trips and consequently reducing transport costs.
Four types of controls are available, in addition to external controls via levers on the distributor:
- Pneumatic, with lever distributor in cab.
- Electronic, with backlit control panel with spiral cable and electro-distributor.
- Radio control. MB 16.
- Proportional, with joystick and Load Sensing function.
THE MULTI-BENNA ASSEMBLY KIT INCLUDES:
- hydraulically extending pivot arms for roll-on /roll-off with independent or synchronised control
- independent hydraulic rear stabilisers
- pneumatically controlled single or double rear hook for skip tipping
- hydraulic distributor with lever controls
fixed length platform - hardox reinforced container support plate
- 4 length-adjustable chains
- emergency button and safety valves
- rustproof painting
- assembly kit, tank and connection pipes
- CE marking and documentation (where required)
Kits for MB160S, MB170S, MB180S, MB280S, MB320S models also include
- perforated chassis
- pneumatic hook safety
- articulated plate
