Skjern - Model DK-6900 -Control Boards
Orbital builds control boards for a vast variety of branches, machines and processing plants. We produce customised single boards and boards for serial production. Orbital delivers Danish quality and flexibility.

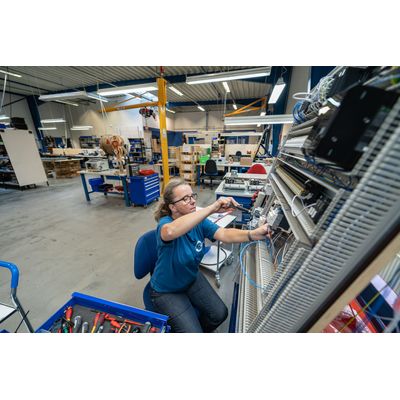

Do not pay for more than you need. The board production in Skjern builds your boards efficiently, carefully and delivers on time. We have streamlined production processes which ensures competitive control boards.
The board production, the automation production and the construction production are all placed in DK-6900 Skjern. The corporation between construction and production offers flexibility and eases our working processes.
No control boards leave Orbital´s production before having passed the Factory Acceptance Test (FAT) in our own testcenter. FAT is performed by our experienced and skilled technicians who can also perform Site Acceptance Test (SAT) when needed.
Industriel control boards are used for both surveillance and controlling processes within the industrial sector. It may be as control boards for production machines or for processing plants. In all control boards there are different components. Electrical, and non-electrical. The electrical components are amongst others a main switch, switches for overvoltage, power supply, transformers, terminal clamps, PLC ( Programmable Logic Controller) and various communication units. The non-electrical components for instance consist of an assembly plate on which the control board is mounted, DIN- rails and wiring channels.
The control board itself is mounted inside a size fitted control cabinet adapted to the working climate. Orbital will fit a sealed climate system inside the cabinet if the installation climate requires so. This assists the control board to perform at its best at all times.
The control cabinet itself can have 1 – 3 doors and made of plastic, fibre glas, aluminium, stainless or lacquered steel. If you choose stainless steel, the cabinets will be a AISI 304 OR AISI 316 depending on the working climate. For coastal working climate, the AISI 316 is ideal due to its resistance towards salt.
The front of the control cabinet will have different buttons for the operators to work with for easy access. The buttons can be for an Emergency stop and Reset.
