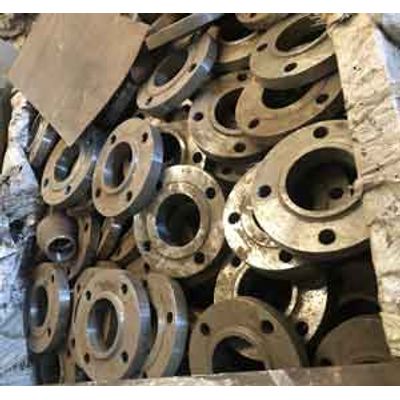

Skyland - Model ANSI / ASME B16.5 -Socket Weld Flange

The purpose for the bottoming clearance in the Socket weld Flange Dimensions is usually added in order to reduce the residual stress that could occur during solidification of the weld metal at the root of the weld. The specification for ASTM A182 SS socket weld blind flange covers both forged or rolled alloy as well as stainless steel pipe flanges, forged fittings, and valves and parts, that have been designed for use in high temperature applications.

Socket weld flange a105 is a very commonly used carbon steel material grade used in the manufacture of forge piping components such as the MSS SP-44 socket weld pipe flange and forged fittings of small diameter piping. This grade of Carbon Steel Socket weld Flange is used for ambient- and higher-temperature service in pressure systems.

ASME B16.47 Series a Socket Welded Flange manufacturers, ASME B16.47 Series b Socket Weld Orifice Flange Exporter in India, Socket Weld Rtj Flange stockholder, ANSI B16.5 Class 150 SWRF Flanges Price List in Mumbai

The disadvantage of this ANSI B16.5 Socket weld Flanges is right the gap, which has to be made. When exposed to corrosive products, that are mainly present in stainless steel pipe systems, the crack between pipe and Stainless Steel Socket weld Flanges can give corrosion problems. Therefore the Socket weld Forged Flanges are not allowed in some processes.

Additionally for this Inconel socket weld reducing flange counts, is that in principle, always a pipe must be welded first which can then be followed by a fitting such as the ASME B16.5 Socket Weld Flanges. We are a reputed socket weld flange manufacturer, supplier, distributor and exporter of socket weld raised face flange.
ANSI B16.5 Class 150 Socket weld Flanges and Flanged Fittings: NPS 1/2 up to NPS 24 Metric/Inch Standard covers pressure & temperature ratings, materials, marking, testing, dimensions, tolerances, and methods of designating openings for pipe Alloy Steel Socket weld Flanges and aluminium socket weld flange fittings. Included are:

ASME B16.5 Socket Weld Flanges covers pressure rating classes with designations such as 150, 300, 400, 600, 900, and 1500 in sizes NPS 1/2 through NPS 24 as well as Socket weld Raised Face Flanges with pressure rating classes for designation 2500 in sizes NPS 1/2 up until NPS 12, with requirements given in both metric as well as U.S. Customary units with diameter of bolts and ASME B16.5

SWRF Flanges bolt holes expressed in inch units;

socket weld flange fittings with rating class designation 150 and 300 in sizes NPS 1/2 through NPS 24, with requirements given in both metric and U.S. Customary units with diameter of bolts and bolt holes for 600# socket weld flange dimensions expressed in inch units;

flanged fittings such as socket weld flange weight with rating class designation 400, 600, 900, and 1500 in sizes NPS 1/2 through NPS 24 and socket weld ring joint flange fittings with rating class designation Nickel Alloy 2500 lb socket weld flange in sizes NPS 1/2 through NPS 12 that are acknowledged in Non-Mandatory Appendix E in which only U.S. Customary units are provided.
