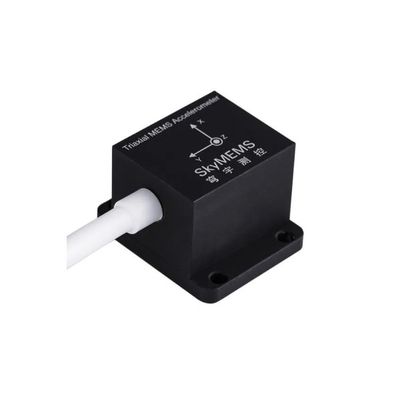

SkyMEMS - Model MAS3012 -MEMS Capacitive Accelerometer Sensor
MS3012 single/dual/tri-axial MEMS accelerometer sensor is one type of high-performance vibration monitoring sensor base on MEMS technologies. It adopts 7~24V or 5V±3% power supply, integrate X-Y-Z trial axes and self test function, it adopts high performance accelerometer, the dynamic range can reach 110dB. MS3012 accelerometer sensor has passed the strictest tests, it enjoys excellent performance in noise, dynamic range, non-linearity, repeatability, temperature drift, shock proof, etc. this product is an ideal option for seismic monitor, vibration monitoring, high speed train/metro train, test platform of vibration and shocking, structure health monitoring, etc.
Single/Dual/Triaxial MEMS Capacitive Accelerometer Sensor, ultra-low noise: 1ug, dynamic range: 110dB, widely used in vibration monitoring, etc.
- Closed Loop Structure MEMS Capacitive Accelerometer
- Range: ±2g, ±5g, ±10g, ±30g, Excellent Bias Stability
- Dynamic Range: ≥110dB,
- Bandwidth: MAS3012-2 ≥1KHz (Typical Value, -3dB)
- Low Noise: MAS3012-2≤1.0μgrms/√Hz
- Non-linearity: 0.1%FS (Full Range)
- Extremely Reliable in Harsh Environment
- Wide Operating Temperature Range: -40~+85ºC
MS3012 single/dual/tri-axial MEMS accelerometer sensor is a high-end MEMS accelerometer sensor, specially designed for earthquake and vibration monitoring. Thanks to its up to 110dB dynamic range, lower noise, resistance to high shocks and insensitivity to harsh environments, MS3012 accelerometer assures confident and accurate vibration measurements in rugged environments, which has been widely used in the following fields:
- High-speed Train / Metro Train
- Early Earthquake Warning System
- Structural Health Monitoring
- Vibration Monitoring System
- Industrial Process Control
MS3012 accelerometer widely used in high-speed train
As one of the new four great inventions, Chinese high-speed railway provides high speed, stable, comfort services for the passengers. has formed a high-speed railway technology platform and technology system with independent intellectual property rights.
SkyMEMS Accelerometers are based on silicon MEMS capacitive sensors, which offer higher performances in terms of size, power, reliability, long-term stability, signal to noise and robustness.
SkyMEMS Accelerometers have been widely used in the high-speed train, they are used to monitor several types of mechanical motions such as inertial force (acceleration), tilt (inclination), vibration and shock.
MS3012 accelerometer widely used in Seismic monitoring
Earthquake early warning systems use earthquake science and the technology of monitoring systems to alert devices and people when shaking waves generated by an earthquake are expected to arrive at their location. The seconds to minutes of advance warning can allow people and systems to take actions to protect life and property from destructive shaking.
Accelerometers are usually used where precision records of smaller seismic events are required. SkyMEMS accelerometers provides low noise and low frequency accelerometers, it can accurately measure the vibration changes, which are widely used in the seismic monitoring systems.
MS3012 accelerometer widely used in structural inspection
The development of safety systems and continuous monitoring of buildings, bridges, railways is very important to achieve these purposes. MEMS accelerometer sensors are used in structural inspection. If the high building vibration signal is abnormal, the monitoring system can get the signal and send out alarm.
SkyMEMS accelerometers provides low noise and low frequency accelerometers, it can accurately measure the vibration changes, which are widely used in the structural inspection monitoring systems.
