Quadrex - Model 007-10-15NB-0.1F -Slightly Polar Fused Silica Capillary Columns

• Phase Code: 007-10
• Column Length (M.): 15M.
• Column ID (mm): 0.1mm
• Film (microns): 0.1um
• Phase Type: 10% phenyl methylpolysiloxane

General area of use

volatiles.

007-10 (10% phenyl substitution, respectively) are the Quadrex designations of phenyldimethylpolysiloxane phases. The phenyl substitutions contribute to the "induced dipole" selectivity of these phases. A column coated with either phase displays excellent efficiency and thermal stability. These phases provide an excellent alternative for drug and environmental pollutant analyses where greater retention of aromatic compounds is necessary.

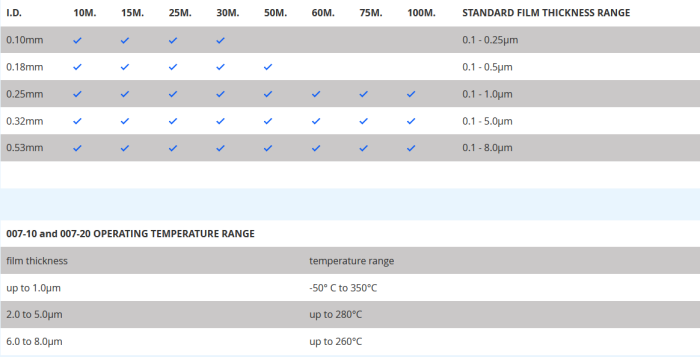

007-10 Phenyl Methylpolysiloxane columns are available in all standard column I.D.`s and column lengths. The film thickness ranges are noted in the chart below.
