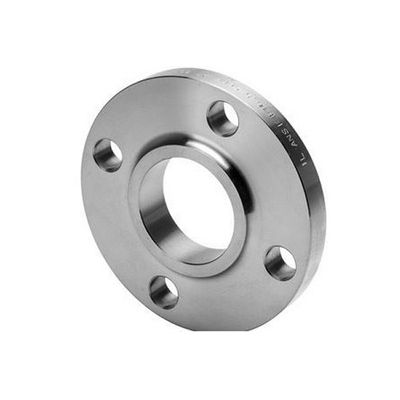

WSA - Slip On Flanges
Western Steel Agency is one of the most leading Slip-on Flanges Manufacturer in Mumbai, India. ANSI B 16.5 are designed and developed in accordance with international quality standards. One of our popular products in the Metal Market is Slip-on Flanges. We are an ISO 9001:2008 certified company with existence in the Metal Market since 2007. We are offering market-leading prices on ASTM A182 Slip-on Pipe Flanges to all our customers, with a stock of standard, sizes, and types available for immediate delivery worldwide. We are named as one of the top Manufacturers of Slip-on Flanges in India. Our available qualitative range of Slip-on Flanges and other types of products are exclusively designed for several piping applications of various industries such as Chemical, Petrochemical, Building, and Construction, and many more.
ANSI B 16.5, ASME B 16.47, MSS SP44, ASTM A182 Slip-on Pipe Flanges & Raised Face Slip-on Flanges Manufacturer & Exporter in India
We are the world’s topmost Slip-on Flanges manufacturer in India. Performance and Dependability of the Slip-on Flanges has made Western Steel Agency the leading Stockholder, Manufacturer, Supplier, Importer, and Exporter in India. We mostly use very high-quality raw materials for manufacturing these products. Slip-on Flanges are made of good quality. Over the last ten years, we have delivered 2500+ containers of Slip-on Flanges all over the world. Slip-on Flanges products are mainly designed to control and help the flow of liquids, gases, or other materials. Moreover, we serve our customers with Fabrication and Rubber Lining thing according to our Clients demand. We also supply Blind Flanges, Weld Neck Flanges, Socket weld Flanges
Specifications for Slip On Flanges is mentioned below. If any of the specification is not mentioned here, please get in touch with us
- Size : ½” (15 NB) to 48″ (1200NB)
- Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
- Standards : ANSI B16.5, ANSI B16.47, ANSI B16.36, ANSI B16.48, BS 4504, EN1092, UNI 2277/2278, DIN
- Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
- Coating/Surface Treatment : Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized
Dimension Chart for Slip On Flanges is mentioned below. If any of the Dimension is not mentioned here, please get in touch with us
- Outside Diameter
- ≤ 24 = 1.6 mm | > 24 = ± 3.2 mm : Inside Diameter
- ≤ 10 = ± 0.8 mm | ≥ 12 = + 1.6 mm / – 0 mm
- Diameter of Contact Face
- 1.6 mm Raised Face = ± 0.8 mm
- 6.35 mm Raised Face, Tongue & Groove / Male-Female = ± 0.4 mm : Outside Diameter of Hub
- ≤ 12 = + 2.4 mm / – 1.6 mm | ≥ 14 = ± 3.2 mm
- Diameter of Counterbore
- Same as for Inside Diameter : Drilling
- Bolt Circle = 1.6 mm | Bolt Hole Spacing = ± 0.8 mm
- Eccentricity of Bolt Circle with Respect to Facing
- ≤ 2½ = 0.8 mm max. | ≥ 3 = 1.6 mm max.
- Thickness
- ≤ 18 = + 3.2 mm / – 0 | ≥ 20 = + 4.8 mm / – 0 : Length thru Hub
- ≤ 18 = + 3.2 mm / – 0.8 mm | ≥ 20 = + 4.8 mm / – 1.6 mm
