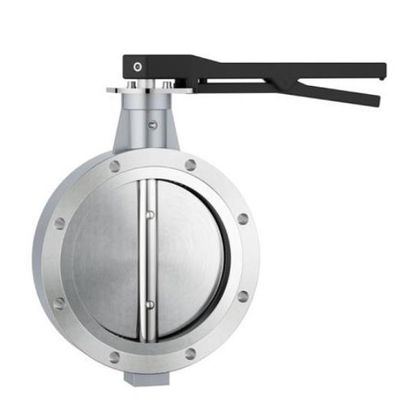

Burgmer - Model 120 N -Slot Butterfly Valve
Application area: Silo trailers, Plant engineering. Installation situation: Wafer type / Lug type. Medium/aggregate state: Bulks. Diameter: DN 50 – DN 350. Pressure range: product tight; not 100% tight. Feature: metallic sealing, high wear resistance.
Most popular related searches
- Casing: EN AC-46200 / EN AC-51100
- Disc: 1.0038 / 1.4301
- Shaft: 1.1191 / 1.4404
- Sealing: 1.4301, none*
- Flange bores: TW-Norm, PN 6, PN 10, special boring
- Actuation:
- Hand lever / prepared for cardan joint,
- Customs locking device,
- pneumatic driven (double-acting / single-acting),
- electric driven (setting-drive / variable speed drive),
- Hand worm gear
- Guideline:
- according to DGRL 2014/68/EU
- according to FDA 177.2600
- according to VO EG 1935/2004
