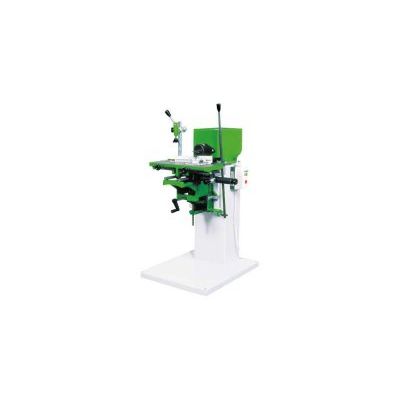

ROJEK - Model VDA 316 -Slot Mortising Machine
Mortiser; Precision ground cast iron table with slot. One-lever operating system. Overload protection. Woodpresser. CE standards. Options: Four size rotor group with fixed position 16, 22, 32, 38 mm. Table slot and guide with protractor.
Most popular related searches
Slot Mortising Machine
- Motor power : 2,2 (3,0) kW
- Motor speeds : 2 860/min.
- Max. tool diameter : Ø 16 mm
- Max. height of mortising above the table : 125 mm
- Max. longitudinal travel of the table : 220 mm
- Max. cross travel of the table : 135 mm
Machine Dimensions
- Length : 740 mm
- Width : 560 mm
- Height : 1 320 mm
- Table size : 460 x 190 mm
- Gross weight : 95 kg
- Nett weight : 90 kg
Other Parameters
- Voltage / frequency : 3x400V (3x230V | 1x230V) / 50(60)Hz
- Line safeguarding : 16 A
- Noise level without technology LAeq : 85,0 dB(A)
- Noise level with technology LAeq : 87,0 dB(A)
- Acustic achievement : +
- Acustic achievement (with technology) : +
