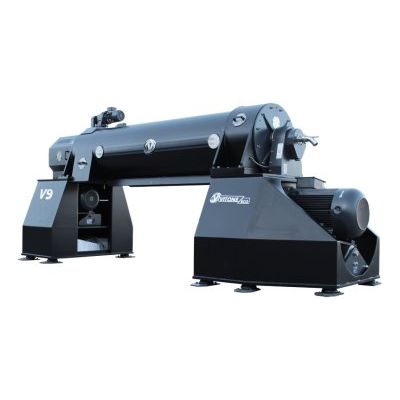

Vitone MR. SLUDGE - Model V9 -Sludge Decanter Centrifuges
Main Features; Bowl diameter: 650mm. Slenderness ratio L/D: 4. Maximum Bowl speed: 2.700rpm. Bowl conical angle: 20°.
Most popular related searches
sludge decanter centrifuge
sludge decanter
decanter centrifuge
sludge centrifuge
decantation
centrifuge
decanter
VFD control
variable frequency drive controller
Main Motor
- Rating: 90 ÷ 132kW
- Supply Voltage See site requirements
- Control: VFD
- Enclosure: IP55
- IE3 Efficiency
Secondary Motor
- Rating: 22 ÷ 75kW
- Supply Voltage: See site requirements
- Control: VFD
- Enclosure: IP55
- IE3 Efficiency
Materials
- Bowl: AISI 431 AISI 316L DUPLEX
- Scroll: AISI 431 AISI 316L DUPLEX
- Feed Tube: AISI 304 AISI 316L
- Centrate disk AISI 304 AISI 316L
- Liquid and solid chamber AISI 304 AISI 316L
- Product contact part: AISI 304 AISI 316L
- Protection carter: Carbon steel painted
- Structure: Carbon steel painted
Dimensions and Weight
- Length: 5.400 mm
- Width: 1.720 mm
- Height: 2.150 mm
- Mass: 9.000 Kg
