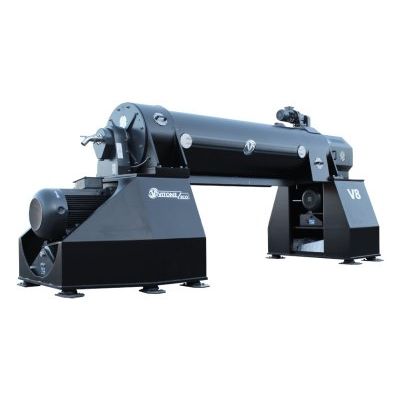

Vitone MR. SLUDGE - Model V8 -Sludge Decanter Centrifuges
Principal Characteristics: Hydraulic capacity: 80 mc/h. Bowl diameter: 550 mm. Slenderness ratio L/D: 5. Cone angle: 8°. Bowl revolution max: 3.300 rpm. Different speed: 1÷ 64 rpm.
Most popular related searches
sludge decanter centrifuge
sludge decanter
decanter centrifuge
sludge centrifuge
decantation
centrifuge
decanter
Bowl Drive:
- Bowl motor power: 55 ÷ 90 kw
- Efficiency: IE2
- Type: Trifase
- Supply: 380/400 Volt
- Frequency: 50/60 Hz
- Protection degree: IP55
- Starting and regolation: Inverter
Scroll Drive
- Scroll motor power: 18.5-30 kW
- Efficiency: IE2
- Type: Trifase
- Supply: 380/400 Volt
- Frequency: 50/60 Hz
- Protection degree: IP55
- Starting and regolation: Inverter
Size and Weight
- Length: 4.800 mm
- Width: 1.400 mm
- Height: 2.100 mm
- Mass: 6.000 Kg
Materials Employed
- Bowl material: AISI 431 / AISI 316 / DUPLEX
- Scrool material: AISI 304 / AISI 316 / DUPLEX
- Inlet pipe material: AISI 304/AISI 316L
- Product contact part: AISI 304/AISI 316L
