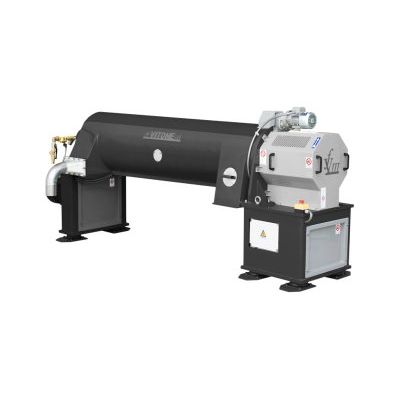

Vitone MR. SLUDGE - Model V3 -Sludge Decanter Centrifuges
Main Features; Bowl diameter: 350mm. Slenderness ratio L/D: 5,5. Maximum Bowl speed: 4.000rpm. Bowl conical angle: 20°.
Most popular related searches
sludge decanter centrifuge
sludge decanter
decanter centrifuge
sludge centrifuge
decantation
centrifuge
decanter
VFD control
variable frequency drive controller
Main Motor
- Rating: 15 ÷ 30kW
- Supply Voltage See site requirements
- Control: VFD
- Enclosure: IP55
- IE3 Efficiency
Secondary Motor
- Rating: 5,5 ÷ 15kW
- Supply Voltage: See site requirements
- Control: VFD
- Enclosure: IP55
- IE3 Efficiency
Materials
- Bowl: AISI 431 AISI 316L DUPLEX
- Scroll: AISI 431 AISI 316L DUPLEX
- Feed Tube: AISI 304 AISI 316L
- Centrate disk AISI 304 AISI 316L
- Liquid and solid chamber AISI 304 AISI 316L
- Product contact part: AISI 304 AISI 316L
- Protection carter: Carbon steel painted
- Structure: Carbon steel painted
Dimensions and Weight
- Length: 2.990 mm
- Width: 800 mm
- Height: 1.400mm
- Mass: 1.900 Kg
