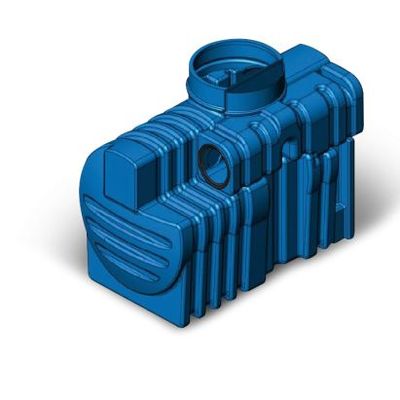

Saint-Dizier - Model SPEHDO 3 to 10 -Sludge Trap/Oil Interceptors
Interceptor collects free oil and intercepts the solid matter (sand, mud...). Pretreatment of rainwater and stormwater coming from uncovered parking garages and roads.
Most popular related searches
oil interceptor
sludge trap
coalescing filter
oil discharge
oil alarm
polyethylene tank
nanofiltration membrane
rainwater stormwater
sludge oil
EN standard
- Conformity : standards NF EN 858-1 and NF P16-451-1/CN
- Certification : NF mark delivered by an independant agency
- Easy to operate and maintain
- 10-years warranty via insurance supplemented by an Epers
- The trap compartment is calculated to obtain 100 liters x NS
- The interceptor compartment is dimensioned for a free oil discharge less than 5mg/L in the test conditions of standard NF EN 858-1
- When the nominal flow rate is reached, excess flow overflow by bypass
- High density polyethylene tank
- Built-in bypass sized for 5 x NS (l/s) peak flow
- Coalescing filter in crosslinked polyurethane (expendable) - MOUSSE350 et MOUSSE600
- Vertical polyethylene automatic closing-off device with lip seal calibrated for oil density at 0.85
- Resistance class 1d according to NF P16-451/CN
- Connections : input and output with lip seal
- Polyethylene manholes for extensions and covers Ø 650 mm for NS 3 and Ø 780 mm for NS 6 and 10, in option
- Visual and audible oil alarm - KAH050
- polyester extensions 500mm - RHPSPEHD and cover - COU
