EEC - Sludge Treatment and Wastewater Treatment Systems
EEC also specializes in the sludge treatment and wastewater treatment systems, offer sludge and wastewater treatment solutions worldwide. EEC can provide design, engineering, supply, installations and services for wastewater and sewage treatment. We offer solutions for sludge dewatering, sludge dryer and carbonize. EEC has decades of experience in the wastewater field followed up with 1000′ of installations globally. The company possesses complete sets of process design, equipment supply, constructions, and technology innovation. Overall, we are highly qualified of delivering turnkey and BOT projects for any industry. We have various experiences in treatment hazard wastewater industrial, domestic or commercial.

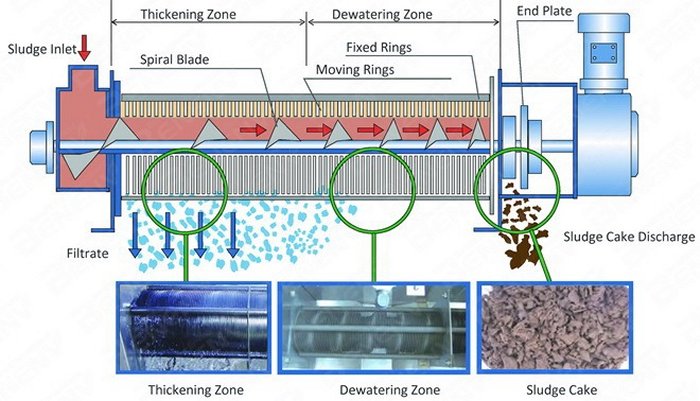

The EEC Multi-Disk Screw Press( Hereinafter referred as MDS ) belongs to the screw press, it’s clog-free and can reduce the sedimentation tank and sludge thickening tank, saving the cost of sewage plant construction. MDS using screw and the moving rings to clean itself as clog-free structure, and controlled by the PLC automatically, it’s a new technology that can replace the traditional filter press like belt press and frame press, the screw speed is very low, so it cost low power and water consumption in contrast to the centrifuge, it is a cutting edge sludge dewatering machine.
- The Sludge Dewatering Press is an enclosed high-performance sludge dewatering system. It utilizes a central screw auger and a slowly oscillating multi-disk filter to gradually increase pressure on flocculated sludge to produce an exceptionally dry sludge cake. With electrical, water and polymer usage, and high capture rates the system is very cost effective.
- The Sludge Dewatering Press can be provided with all equipment required for dewatering included and factory mounted, piped and wired on a single stainless-steel skid. This equipment includes the sludge pump, wash water pump, polymer dosing system and control panel. The system features fully automated one pushbutton startup and shutdown. Once started up the system can run unattended and can be set to shutdown automatically with no operator intervention.
- The Sludge Dewatering Press is constructed entirely of stainless steel.
- Enclosed to minimize odors and noise
- Very low wash water usage(1/8 compared with belt press)
- Very low power consumption(1/20 compared with centrifuge)
- High cake solids
- Minimal operator requirement
- Easy to operate and maintain
- Auto start-up, run and shutdown
- Touch screen operation optional
- Sludge Flow and Cake Monitoring System
- Available with many other options like Dairy, Palm Oil, etc.
- Screw Press
- PLC Controls
- Sludge Pumps
- Back Wash System
- Flocculation System
- Polymer Dosing Unit
- Sludge Cake Conveyor
