Sichuan Zigong Pump & Valve Co., Ltd.
Products
Zigong - Model ZD(ZDT) Series - Slurry ...

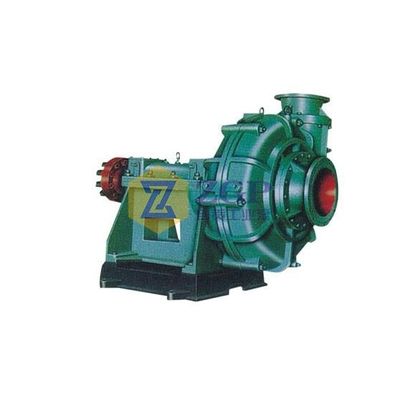

Zigong - Model ZD(ZDT) Series -Slurry Pump

FromSichuan Zigong Pump & Valve Co., Ltd.

SHARE

ZD(ZDT) slurry pump was specially designed for industries of electricity power, metallurgy, coal mine and construction materials, to pump neutral or alkali slurries with solids. It is optimized designed to owns the features of high efficiency, simple structure, easy maintenance and low operational cost. ZD(ZDT) series is suitable for applications of normal pressure and low fluid density, and it can be only used as single operated pump set.

Most popular related searches

variable frequency drive

hydraulic modeling

variable frequency drive pump

desulfurization

Flow rate:Q=10~1000 (m³/h)
Total head:H=20~60 (m)
Speed:n=740~2900rpm
S.g.:γ ≤1.23
Temperature:T=0~70?
Pump diameter:25~300mm

Pump for conveying neutral or alkali slurries with solids.
Bracket structure with single casing,easy for disassembly.
Horizontal structure with a big loading capacity.
Optimized hydraulic models of wide applicability.
Heavy duty shaft with better performance in strength.
Low pump speed and linear speed design to reduce the abrasion of pump.
Various anti-abrasion materials for different applications.

Single casing design. The casing and guard plate are working as anti-abrasive parts without outer frame.
GB standard flanges,inlet pressure 1.6 MPa,outlet pressure 2.5 MPa;
Shaft sealing: Dynamic seal,packing seal and mechanical seal.
Transmission: Direct coupled,V-belt drive,variable frequency drive,hydraulic coupling.

Industries of electricity power,metallurgy,coal mine and construction materials,to pump neutral or alkali slurries with solids.
Desulfurization process in thermal power plant.
Can be only used as single operated pump set.
