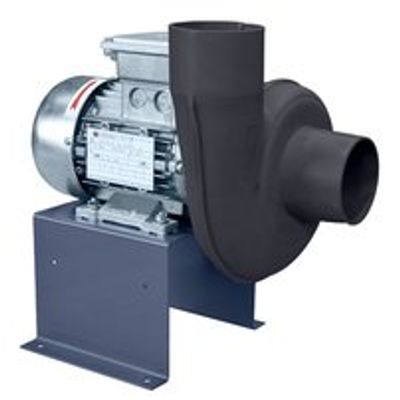

HLU - Model HF R 75/110 -Small Centrifugal Fans

Radial fans; can be used in all applications with small air volumes. low weight and compact dimensions ensure easy installation. ideal for 24-hour exhaust air from chemical storage cabinets. optionally suitable for installation and extraction from ATEX Zone 2 and 1.

Most popular related searches

ATEX zone 1

chemical storage cabinet

high-pressure radial fan

storage cabinet

chemical storage

electrical conductivity

volume flow of 15 – 500 m³/h
at a maximum pressure difference of 420 Pa
available in nominal diameters 75 and 110 mm

volume flow ;15 – 500 m³/h
maximum pressure difference ;420 Pa
nominal diameters ;75 and 110 mm
operating temperature ;0 – 60 °C
housing material ;PPs-el
impeller material ;PPs-el
drive ;three-phase or alternating current motor
Atex ;suitable as standard for installation and extraction from ATEX Zone 2, optionally for ATEX Zone 1 in electrically conductive version
execution ;standard with shaft seal
connection variants ;pipe or flange connection

corrosion-resistant
compact design
variants for different installation situations
quick availability of standard variants
engine outside the airflow
Use of different motors (Ex-motors) possible
