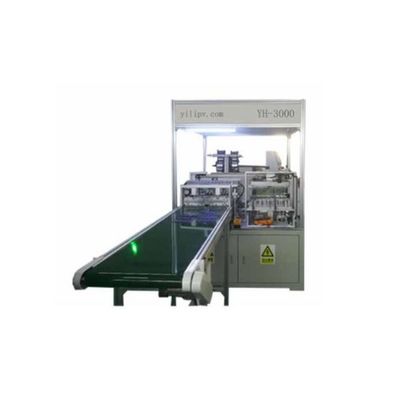

YiLi - Model YH 3000 -Small Cutting Cells Welding Machine
H3600 stringer machine can suit for small cutting cells from 6mm to 52mm soldering. It means that you can make 3w to 60w small solar panels automatically by this machine Strong software development capability make the time of change different cell size is less than 5 minutes
Stringer can weld 2 3 4 5 bb cells whose length is 156.mm or 125mm. suit for the cutting cells whose length are 32mm 39mm 52mm 78mm. Time of change busbar is shorter than 30 minutes The real capacity of single busbar could reach 3600pcs/hour.
Most popular related searches
- cells gap is adjustable between 0.1mm to 20mm
- length of stringer tail ribbon and head ribbon is adjustable between 5mm to 20mm, after interconnection you don’t need to cut the rest of ribbon to improve production performance.
- Trendsetter of automatic stringer separate technology leads the cutting cells soldering industry. Other machine without this function, it means you will solder the last ribbon of every stringer manually if you use other’s machine.
- automatic soldering iron clearance
- cells breakage is less than 0.6%
- alignment is 0.3mm, it’s based on the ribbon is wider than the busbar 0.3mm
- easy operation and low maintenance cost
- fast ribbon change, a skilled operator can change one ribbon less than 30 seconds.
- rotating operate touch screen make you can operate the machine 360 degrees.
